Handheld EDXRF Analyzer | ProSpector Get latest price

Read more...

To contact Radiant Instruments Pty Ltd about Handheld EDXRF Analyzer | ProSpector use Get a quote.

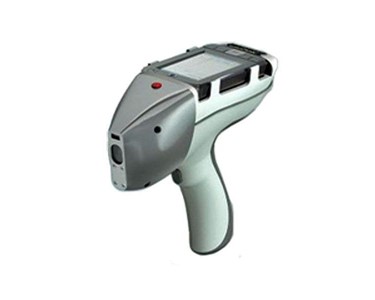

Portable XRF analyser ProSpector- the Energy Dispersive X-Ray Fluorescence (EDXRF) spectrometer systems.

Like all GNR products handheld EDXRF elemental analysis system is designed to be intuitive and user friendly.

The system utilizes a 7.2 Vdc Lithium ion battery. Under normal use it has an operating time of 10 hours before charging is required.

The new ProSpector operates at a high voltage of 40 kV but can be set for up to 50 kV, and has a detectable range of Cl to U. The light element option has a detectable range from Mg to U.

ProSpector operates under control of the HP iPAQ PDA with 4-inches high resolution touch-screen display, providing high flexibility and usability of the system.

The optional lab stand allows using the new ProSpector as a laboratory grade instrument under PC or laptop control.

Technical Details

Basic Specifications

• Standard Element Detection Range From Cl (Z=17) to U (Z=92)
• Optional Light Elements From Mg (Z=12) to S (Z=16)
• Battery Operation Time Up to 8 hours
• Dimensions 242 mm (L) x 230 mm (H) x 78 mm (W)
• Weight (with battery) 1230 g (1440 g)

Technical Specifications

• X-Ray Tube W anode, 40 kV max (50 kV max optional), 100uAmp max optional Ag anode for light element analysis 5 filter positions
• X-Ray Detector
• Detector Type Solid state Si-pin-diode with thermo-electrical cooling<br />(optional SDD)
• Active Area 6 mm2 (optional 25 mm2)
• Energy Resolution <165 eV at 5.9 keV (<140 eV for SDD)

System Electronics

• Pulse Processor Digital pulse processor based on 80MHz DSP<br />Pile-up rejection<br />Pulse shape selector<br />Automatic adjustment to count rate
• MCA 4096 channels
• Data Processing 624 MHz PDA
• Display High resolution 4 inches color touch-screen

Application

On Site Instant Analysis without sampling

• Metal Identification
• Ferrous and Non Ferrous Alloys Sorting
• RoHS, WEEE and Proposition 65 Compliance Testing
• Lead determination in paint, toys, furniture, and clothing
• Soil and sediment analysis
• Mining
• PMI and alloy
• Mining and Exploration
• Environmental analysis
• RoHS and WEEE
• Archaeometry
• Clays and Oxide
• Forensics
• Car catalyst
• Coating thickness
