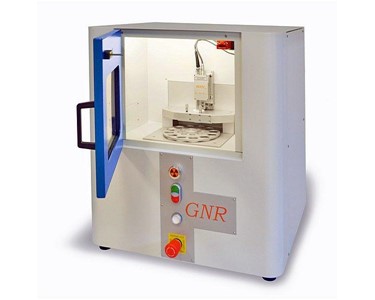

Horizon  Benchtop EDXRF Spectrometer components are mounted in a steel cabin shielded in accordance to the international X-ray safety rules, equipped with lead glass windows, flushing lamps and safety interlocks.

TXRF is a type of Energy Dispersive X-Ray Fluorescence (EDXRF) in which the X-Ray beam strikes the sample deposited as a thin layer on a carrier at a very small incident angle in order to exploit the excitation enhancement given by the total reflection effect. As far as the sample is thin enough (thin film approximation) the technique’s main strengths are:

• No matrix effects
• Simple quantification using internal standard
• Calibration and quantification independent from any
• sample matrix
• Simultaneous multi-element ultra-trace analysis
• Minimal quantity of sample required for the measurement (5μl)
• Excellent detection limits (ppt or pg)
• Excellent dynamic range from ppt to percent
• Easy sample preparation
• Possibility to analyse the sample directly without chemical pre-treatment
• No memory effects
• Low running costs

Safe and easy to use Horizon is a state of the art of the Total Reflection X-Ray Fluorescence spectrometer delivered with most advanced technical components which provides great accuracy and precise results.

It is a powerful tool for trace analysis at an affordable price.

Technical Details

•  X-Ray Generator
• Maximum Output Power 600 W
• Max Output Voltage 40 kV
• Max Output Current 15 mA
• X-Ray Tube (*)
• Type Glass, Mo anode, fine focus
• Focus 0.4 x 8 mm
• Max Output 600 W (factory maximum: 2.0 kW)
• (*) different anodes can be mounted on request
• Multilayer monochromator
• Type W/Si
• Reflectivity 80%
• Excitation energy
• Mo-Ka 17.44 keV (DE<1 KeV)
• Sample Holder 12 position sample holder
• Detector
• Type Peltier-cooled Silicon Drift Decoder (SDD)
• Active Area 30 mm2 (other size available)
• Resolution <133 eV (@Mn-Ka, 1 ms peaking time)
• Atmoshere Air or He flux
• Case
• Dimensions Windth 578.5 mm, Height 788.5, Depth 555 mm
• Leakage X-Rays < 1 mSv/year (full safety shielding according to the international guidelines)
• Cooling External Chiller (650 (h), 377 (w), 521 (d))

Software

• Acquisition Measurement batch setup
• Detector parameter settings

Analysis

• Automatic Least Square Marquardt fit procedure for background determination and peak area calculation
• Automatic / Manual search Function
• Energy calibration refinement
• Quantification via an internal standard using theoretical and /or experimental sensitivity curves for total reflection
• Possibility of using different sensitivity curves, e.g. sample dependent
• Analysis report generation

Software

Acquisition Software

Windows software designed to control Explorer includes features like the batch programming for a set of measurements. The program can control different kinds of detectors and devices attached to the instrument. Control panels for scintillation, linear position sensitive detectors and XRF X-GLAB SDD detector are integrated.

Analytical Software

Least square Marquardt fit procedure for the area calculation (spectral analysis)

Automatic/manual search function

Manual or automatic calibration of energy

Quantification via an internal standard using theoretical and experimental sensibility curves for total reflection

Application

• Environmental Analysis: water, dust, sediments, aerosol (ISO/TS 18507:2015, ISO 20289:2018)
• Medical/Pharma: toxic elements in biological fluids, tissue samples and catalyst residues
• Forensic Science: analysis of extremely small sample of quantities
• Pure chemicals: acids, bases, salts, solvents, water, ultrapure reagents
• Oils and greases: crude oil, essential oil, fuel oil, gasoline, jet fuel
• Pigments: ink, oil paints, powder
• Nuclear Industry: measurements of radioactive elements
