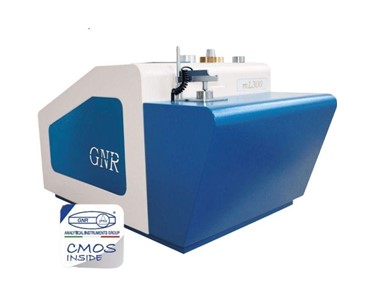

Specifications of S3 Minilab Optical Emission Spectrometer (OES)

• Ultra-Compact Design: One of the smallest and lightest benchtop OES units available, measuring just 530 × 830 × 460 mm and weighing 70 kg—ideal for labs with limited space.
• Advanced CMOS Detector System: Equipped with up to 7+1 high-resolution CMOS detectors, delivering exceptional spectral resolution (<10 pm) for precise elemental analysis across a wide range of metals and alloys.
• Broad Spectral Range: Covers 130–700 nm, enabling comprehensive detection of both light and heavy elements in ferrous and non-ferrous matrices (Fe, Al, Cu, Ni, Zn, Ti, Mg, Co, Pb, Sn).
• Low Argon Consumption: Proprietary argon-purged optical chamber uses just ~10 L/day, significantly reducing operating costs while maintaining high optical clarity, especially in the UV region.
• User-Friendly EOS® Software Suite: Features automated standardisation, certificate generation, extensive alloy libraries (UNI, ASTM, DIN), network connectivity, and remote operation for efficient workflow and compliance with international standards

Features of S3 Minilab Optical Emission Spectrometer (OES)

• Holographic Grating with High Groove Density : Utilises a high-luminosity holographic grating with 3,600 grooves per millimeter, maximizing light efficiency and enhancing spectral resolution for trace element detection
• Easy Addition of Extra Element Lines : The system allows for extra element lines to be added without hardware modifications, offering flexibility for future analytical needs.
• Fully Programmable Solid-State Spark Source: Features a microprocessor-controlled spark source, enabling precise and repeatable excitation for consistent analytical performance
• No Vacuum Pump Required : The argon-purged optical system eliminates the need for a vacuum pump, simplifying maintenance and reducing overall operating costs.
• Stabilized Against Temperature Variations : Special materials and design ensure the instrument remains stable and accurate even with fluctuating ambient temperatures, minimizing drift and ensuring reliable results

Applications of S3 Minilab Optical Emission Spectrometer (OES)

• Foundries and Metal Producers: For routine elemental analysis and alloy verification during production.
• Quality Control Laboratories: Ensuring compliance with UNI, ASTM, and DIN standards in manufacturing environments.
• Research and Development Facilities: Supporting advanced metallurgy and materials science investigations.
• Industrial Fabrication and Processing Plants: For rapid material identification and failure analysis in operational workflows.

• Failure analysis and material identification in industrial labs

Why choose S3 Minilab Optical Emission Spectrometer (OES)

S3 MiniLab 300 stands out as a top choice for metal analysis due to its combination of advanced technology, ease of use, and cost-effectiveness.

• Advanced CMOS Detector Technology: Equipped with multi high-resolution CMOS detectors for complete spectral coverage, excellent light efficiency, and low detection limits.
• Ultra-Compact Design Among the smallest and lightest benchtop OES units, saving valuable lab space and enabling easy integration.
• Outstanding Analytical Performance: Delivers high accuracy and precision across a broad spectral range (130–700 nm), covering almost all elements required for modern metal analysis.
• Low Argon Consumption: Proprietary argon-purged optical chamber uses only ~10 L/day, significantly reducing operating costs while maintaining high optical clarity, especially in the UV region.
• No Vacuum Pump Required: The argon-purged system eliminates the need for a vacuum pump, simplifying maintenance and lowering operational complexity.
• Rapid Measurement & User-Friendly Software: Fast analysis times and intuitive EOS® proprietary software with automated standardisation, flexible results formats, and extensive alloy databases (UNI, ASTM, DIN).
• Versatile Multi-Matrix Capability: Capable of analysing a wide range of elements and alloys (Fe, Al, Cu, Ni, Zn, Ti, Mg, Co, Pb, Sn), including challenging applications like low nitrogen in Fe and sodium/lithium in Al matrices.
• Stabilised Against Temperature Variations: Special design ensures stable, accurate results even with fluctuating ambient temperatures, minimising drift.
• Holographic Grating with High Groove Density: Utilises a high-luminosity holographic grating for enhanced spectral resolution and trace element detection.
• Easy Addition of Extra Element Lines: Flexible system allows for future analytical needs without hardware modifications.
• Affordable and Low Maintenance: Competitive price point with minimal maintenance requirements, making it cost-effective for both routine and demanding applications.
• Global Support and Service: Backed by a strong global network for training, technical support, spare parts, and extended warranty plans
• Single-Sample Standardisation: The S3 MiniLab 300 allows standardisation with just one single sample across multiple base matrices, streamlining calibration and saving valuable lab time
• Solid-State, Microprocessor-Controlled Spark Source: Delivers precise, repeatable excitation for consistent analytical performance, ensuring reliable results even during intensive use
