GNR. S.r.l - GNR Portable XRD Analyzer - Edge Get latest price

Read more...

To contact Radiant Instruments Pty Ltd about GNR. S.r.l GNR Portable XRD Analyzer - Edge use Get a quote.

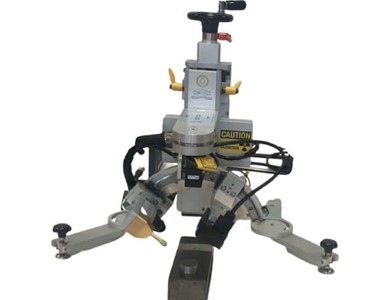

The GNR Portable XRD Analyser - Edge is a revolutionary portable Theta/Theta X-ray diffractometer designed for exceptional portability, lightness, and outstanding performance. This innovative instrument enables reliable measurements on production samples and specimens to determine residual stress, retained austenite, and investigate alloy structure and phase composition.

Specifications of GNR Portable XRD Analyser

• Compliance Standards: ASTM E915, UNI EN 15305 (residual stress), ASTM E975-13 (retained austenite)
• X-ray Safety: Radiation level significantly below annual dose limit for general public (1 mSv/year)
• Instrument Dimensions: 480 x 330 x 450 mm
• Cabin Dimensions: 500 x 500 x 600 mm
• Trolley Dimensions: 795 x 518 x 310 mm
• Weight: 29 kg (Instrument + Main Unit + Battery + Trolley)
• Safety Standards: ANSI N43.3-1993 and industry standards for open beam X-ray operation

Features of GNR Portable Residual Stress Analyser

• Portable Theta/Theta X-ray diffractometer for field and laboratory use
• Low-power X-ray tube with fast and highly efficient detector
• Compact and intelligent device with negligible X-ray emissions
• Complete portable solution including everything needed for measurements
• Flexible configuration options: Standard, Fixed with Cabin, Bridge-specific setups
• Fast and reliable solution for Quality Assurance and Quality Control
• Easy setup with exceptional user-friendliness
• Goniometer head for determining stress state in polycrystalline materials
• Transport bag included for safe storage and portability

Applications of GNR Portable XRD Analyser

• Retained austenite measurement in heat-treated components
• Alloy structure investigation and phase composition analysis
• Bridge infrastructure inspection and cable tension measurement
• Quality control in production environments
• Field measurements in uncomfortable environments
• Laboratory analysis with portable convenience
• Manufacturing process monitoring for quality assurance

Why choose GNR Portable XRD Analyser

• Unmatched portability and lightweight system
• Proven accuracy with ASTM and international standard compliance
• Versatile deployment suitable for both laboratory and field applications
• Maximum safety with radiation levels well below regulatory limits
• Cost-effective solution combining portability with professional-grade performance
• Immediate results enabling real-time decision making in production
• Minimal infrastructure impact for bridge and structural inspections
• 30+ years of GNR expertise in X-ray diffraction technology
• Comprehensive support with proprietary software and analysis tools
