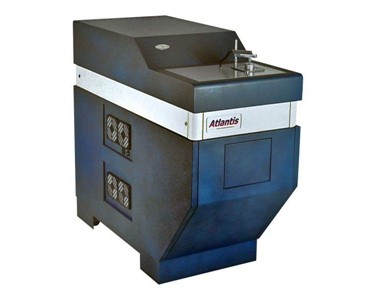

Top of the range S9 Atlantis is the result of 35 years of experience in developing and manufacturing optical spark emission spectrometers. It can be considered as the top laboratory metal analyser with improved analytical performances, highly flexibility and easy to use.

Manufactured with the higher quality components, S9 Atlantis is developed for any kind of analytical task. It is well suitable for routine analysis in the process control, for monitoring in quality control as well as in research and development for complex or specific analytical needs.

S9 Atlantis optical system combines the specific advantages of both photomultiplier tubes and CMOS detector systems.

The spectrometer can mount a cooled table stand and an ultra-vacuum optic by an additional turbo-molecular pump able to grant the highest sensibility for trace elements analysis such as Nitrogen, Oxygen, Phosphorous and Boron in Steels, Copper, Aluminium and Titanium Alloys.

S9 Atlantis can be designed with optional MDS optic (Multi Detector System), granting at the same time the best accuracy and the flexibility of elements to be analysed.

Technical Details

Optical System

• Paschen Rouge mounting
• High luminosity holographic grating depending on the analytical configuration
• Spectral field: 120 to 900 nm
• Focal length 750 mm
• Linear dispersion 0.35 nm/mm in first order depending on grating
• High luminosity holographic grating with 1200, 2400, 2700, 3600 grooves/mm depending
• on the analytical configuration
• Vacuum System: the vacuum grade is provided by mean of a two-stage vacuum pump in series with high efficiency low noise.
• Turbo molecular pump (option ) controlled by vacuum control device can be supplied for better detection in UV elements
• Multi-frequency spark source
• Excitation parameters controlled by computer
• HEPS (High Energy Pre Spark) from 200 to 1000 Hz
• Power Supply: 110/220 V AC 16 A 1 KW
• Dimensions: W 60 x D 130 x H 120 cm
• Weight: ~ 250 Kg

Software

Easy to use GNR proprietary software MetalLab32 for Windows operating system

Operator can use all the spectrometer’s functions in a flexible way and cover all the requirements.

Some of the most important functions are listed:

Analysis

• Automatic Standardization
• Printing and Management of the Certificates
• Determination of alloys in accordance with international norms (UNI, ASTM, DIN etc.)
• Network linking and remote control
• Auto diagnosis

Application

Top laboratory metal analyzer with excellent analytical performances, high flexibility and easy to use.

• Iron & steel alloys and traces
• Nitrogen in steel
• Aluminium alloys and traces
• Copper alloys and traces
• Oxygen in Copper
• Nickel alloys and traces
• Cobalt alloys and traces
• Magnesium alloys and traces
• Tin alloys and traces
• Lead alloys and traces
• Titanium alloys and traces
