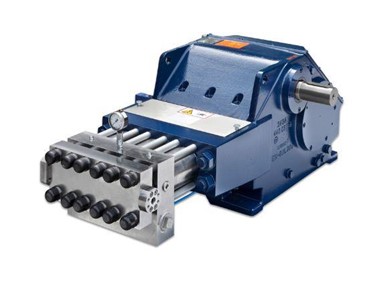

Ultra High Pressure Plunger Pumps | M Series - 550M

Supplier: WOMA Australia

The type 550M high-pressure pump provides a max. operating pressure of 3,000 bar and a max. flow rate of 105 l/min. The high-pressure plunger pumps of the M-series provide working pressures of up to 3,000 bar.

Receive 1-3 days from order

This makes the pumps of the M-series ideal for work such as cutting, fragmenting, stripping and de-rusting.

Built in central valve design, these plunger pumps have high volumetric efficiencies even at high pressures. The hard metal plungers used are extremely stable and ensure a long service life and therefore low maintenance costs. Furthermore, they are insensitive to temperature shocks. The guide of the plunger as well as the sealing water system ensures a long service life of the sealing system and counteracts the intrusion of air.

On request, the availability of an ATEX version can be checked.

Technical data

Weight approx. 1,390 kg

Inlet pressure connection IG 2“

Pressure connection 9/16“ UNF - LH with flange

Cooling water connection IG ½“

Crankshaft max. 455 1/min

min. Depends on operation parameters

Diameter 70 mm k6

Drive shaft feather key DIN 6885 Sheet 1, A20 x 12 x 100

Torque at drive shaft max. 2,558 Nm

Moment of inertia J i = 3.30 → 0.491 kgm² / i = 3.96 → 0.411 kgm² / i = 4.60 → 0.327 kgm²

Centrifugal moment GD² i = 3.30 → 19.26 Nm² / i = 3.96 → 16.14 Nm² / i = 4.60 → 12.80 Nm²

Inlet pressure min. 1.5 bar max. 5.0 bar

Pressure amplitude max. ±2.0 bar

Flow temperature min. +5 °C max. +30 °C (higher temperatures on request)

Flow inlet requirement min. 1.5x nominal feed rate of the pump, dependent on the conversion set

Emission sound pressure level >80 dB(A) according to DIN EN ISO 11200

Oil capacity of transmission end approx. 45 l

Oil viscosity ISO VG under DIN 51517-2 or -3 320 mm²/s

Oil pressure lubrication 2.5 - 5.0 bar

Oil pressure set value overflow valve 5.0 bar

Oil filter fineness 0.025 mm

Oil temperature max. 80 °C Set value 60 - 70 °C

Heat exchanger cooling water requirement approx. 10 - 20 l/min

Heat exchanger cooling water temperature min. +5 °C max. +45 °C

Heat exchanger cooling water pressure min. 1.5 bar max. 10 bar
