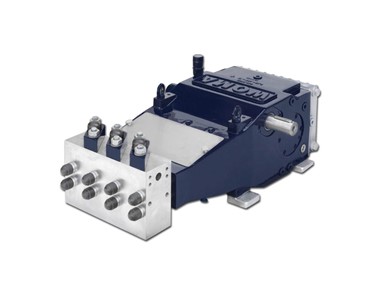

The high-pressure plunger pumps of the 2-series, with operating pressures up to 750 bar and flow rates up to approx. 224 l/min, are ideal for the cleaning of pipes and tube bundles, vessels, and containers. Variant V of the 2-series has been specially developed for applications with elevated inlet pressure.

The sealing system of this plunger pump is particularly service-friendly due to fewer wearing parts and easy maintenance. The ceramic plungers used are highly resistant to acidic and basic fluids. Alternatively, the pump is available with coated steel plungers for increased wear resistance and resistance to thermal shocks. The sealing water system prevents leakage, enables higher durability of the high-pressure seals, and counteracts the ingress of air. As a result, the 2-series offers a high price-performance ratio even in rough working conditions.

Technical data

Weight approx. 254 kg (with splash lubrication system), 264 kg (with pressure oil lubrication)

Inlet pressure connection G 1 ½“A, 2 x aM24x1.5, and 1 x aM36x2

Pressure connection with flange 2 x G1/2“A and 1 x G3/4“A, 1 x iM30x1.5

Cooling water connection G 1“A

Crankshaft max. 500 1/min, min. depends on operation parameters

Drive shaft diameter 40 mm k6, feather key DIN 6885 Sheet 1, A12 x 8 x 70

Torque at drive shaft max. 365 Nm

Moment of inertia J i = 3.00 → 0.015 kgm², i = 3.63 → 0.011 kgm²

Centrifugal moment GD² i = 3.00 → 0.59 Nm², i = 3.63 → 0.43 Nm²

Delivery medium inlet pressure Pump head type 2: min. 1.5 bar (2.0 bar at <170 l/min), max. 5.0 bar

Pump head type 2-V: min. 3.0 bar, max. 8.0 bar

Permissible pressure amplitude max. ±2.0 bar

Flow temperature min. +5 °C, max. +45 °C (higher temperatures on request)

Flow inlet requirement min. 1.5x nominal feed rate of the pump, dependent on the conversion set

Emission sound pressure level >80 dB(A), according to DIN EN ISO 11203

Oil capacity of transmission end approx. 6 l

Oil viscosity ISO VG under DIN 51517-2 or -3, 320 mm²/s

Oil pressure lubrication 2.5–5.0 bar (optional / performance related)

Oil pressure set value overflow valve 5.0 bar (optional / performance related)

Oil filter fineness 0.025 mm (optional / performance related)

Oil temperature max. 80 °C, set value 60–70 °C

Heat exchanger cooling water requirement approx. 5–10 l/min

Heat exchanger cooling water temperature min. +5 °C, max. +45 °C

Heat exchanger cooling water pressure min. 1.5 bar, max. 10 bar
