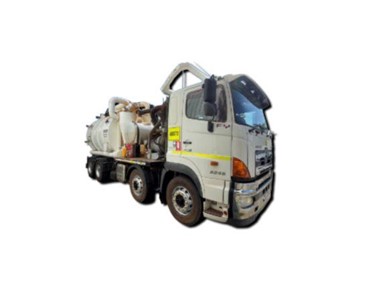

Vacuum Units Truck Mounted | WOMVAC – V83 DG (3-9) Get latest price

Read more...

To contact WOMA Australia about Vacuum Units Truck Mounted | WOMVAC – V83 DG (3-9) use Get a quote.

It combines the high-pressure pump of your selection and a VPC-83 liquid ring vacuum pump driven via the truck transmission to maximize power while minimizing the overall unit weight and space envelope. We offer a range of high-pressure pumps optioned to your target application, from the robust industrial DK HPT and WOMA units to the lighter Hawk range.

Multiple connection points allow for gun work and other jetting and cleaning applications. The VPC-83 (4000 m³/hr – 2350 cfm & 92% – 27 inHg continuous vacuum) with LWT tank, driven through PTO (for increased payload volume), generates outstanding vacuum capacity ensuring debris up to 8” in diameter can be easily collected over long distances and temporarily stored in the up to 12,000 L carrying capacity debris vessel with hydraulic tank tilt, door locks, door actuation, and hydraulic tank locking for transportation and disposal.

The vacuum pump also has the ability to reverse pressure during operation acting as a positive blower up to 0.5 Bar, for removal of hose blockages and rapid evacuation of the debris vessel. Optional cyclonic, water scrubber, and bag house filtration are available.

The overall power, flexibility, capacity, and versatility of the WOMVAC V90 make it an essential addition to any industrial services fleet and an ideal asset for municipal and industrial utility maintenance.

Technical Data

• Wet ring vacuum Dietmar Kaiser pump model VPC 83
• DG 3 & 9, 12,000 L stainless steel (SS 304) cylinder/debris tank
• Aluminium powder-coated hose tray
• Integral water scrubber with removable scrubber feed tube
• HP water pump unit with 30 m hose and 200 L tank
• Clear instrumentation and control labels, laser etched
• Transport lock ring bolts/pin system with truck scale system
• Auto grounding system with interlock to shut down
• Remote air-operated knife and pneumatic valve for tank top fill
• Remote control operations of rear door and tank hoisting
• Rear chute designed to avoid hazardous product accumulation
• 2 x LED flashing warning beacons and 6 x LED work lights
• Bespoke control panel with indicators
• Remote control pendant
