WOMA - Trailer Mounted Units | Ultra-High Pressure - 150M Get latest price

Read more...

To contact WOMA Australia about WOMA Trailer Mounted Units | Ultra-High Pressure - 150M use Get a quote.

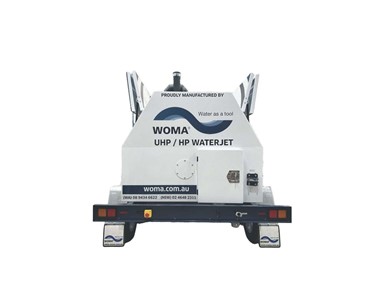

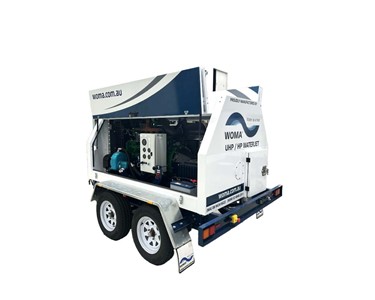

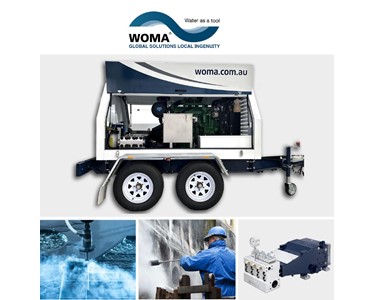

Built for serious performance, the WOMA 150M is a trailer-mounted powerhouse designed for larger contractors and industrial operators. An essential fleet addition, it excels in both short-term contracting projects and ongoing maintenance programs.

From heavy-duty wash-downs and coatings removal to concrete cutting, pipe cleaning, and precision pin-jet work, the 150M delivers reliable high-pressure performance across a wide range of applications. With its low-speed pump technology, this unit is engineered for maximum durability, reduced maintenance, and extended operational uptime — ensuring you get more done with less downtime

WOMA 150M High-Pressure Pump Unit

Engineered for demanding industrial applications, the WOMA 150M delivers reliable high-pressure water performance with a rugged John Deere 6-cylinder diesel power unit. Built with operator safety, efficiency, and durability in mind, this system integrates advanced filtration, intelligent control interlocks, and a robust frame design for long-term field use.

Key Performance Data

• Operating Pressure: Up to 2,500 bar

• Flow Rate: 17–80 l/min

• Drive Speed: 1,800 RPM

• Gear Ratio: 3.69

• Power Output: 80 kW

• Max. Water Temperature: 60°C

Engine & Drive

• John Deere 6-cylinder diesel Industrial Open Power Unit (IOPU)

• Radiator with pusher fan, muffler, and air cleaner

• Mechanical throttle control

• Integrated fuel tank (110–185 L options)

Pump & Water System

• WOMA 150M or 190M high-pressure pump

• Low-pressure boost pump for consistent feed supply

• Stainless steel header tank (30 L) with float valve, low-level, and high-temperature interlocks

• Dual-stage water filtration down to 1 micron

• HDPE filter housing with cartridge system

• Water/fuel separator

Safety & Control Features

• Electrical control panel with Emergency Stop & remote E-Stop socket

• Lock Out Tag Out (LOTO) isolator on battery

• Wet Dump System with:

  • Mechanical trigger

  • Dump-to-atmosphere option

• Pressure switch for NPSH monitoring

Construction & Design

• Robust skid frame in light steel sections, painted to customer specification

• Powder-coated canopy with twin side-access doors

• Toolbox included

• Dual axle with mechanical brakes (transport models)
