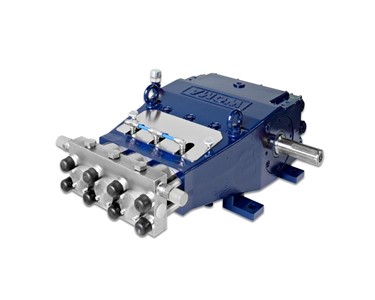

The ultra-high-pressure pumps of the Y-series are particularly compact. Due to the small size and low weight, they can be easily installed in units with very small base frames. With operating pressures of up to 1,000 bar, the Y-series pumps are ideally suited to a wide variety of cleaning work, e.g., in the chemical industry, oil and gas industries, as well as in the area of ship cleaning.

The sealing water system prevents leakage, enables especially high durability of the high-pressure seals, and counteracts the ingress of air. As an option, pumps of the Y-series are fitted with suction valve lifts. This elegant alternative to a bypass valve allows the water to circulate without pressure in the pump head when the water tool is not actuated. Equipped with coated steel plungers, the pump is highly resistant to wear and thermal shocks. Ceramic plungers are also available for the Y-series, which are highly resistant to acidic and basic liquids.

On request, the availability of an ATEX version can be checked.

Technical data

Weight approx. 110 kg

Inlet pressure connection IG ¾“

Pressure connection M22x1.5

Cooling water connection IG ¾“

Crankshaft max. 1,000 1/min, min. depends on operation parameters

Drive shaft diameter 40 mm k6, feather key DIN 6885 Sheet 1, A12 x 8 x 70

Torque at drive shaft max. 492 Nm

Moment of inertia J 0.020 kgm²

Centrifugal moment GD² 0.78 Nm²

Inlet pressure min. 1.5 bar, max. 5.0 bar

Pressure amplitude max. ±2.0 bar

Flow temperature min. +5 °C, max. +45 °C (higher temperatures on request)

Flow inlet requirement min. 1.75x nominal feed rate of the pump, dependent on the conversion set (2x the nominal flow rate of the pump, depending on interchangeable conversion set, if the optional internal gearbox cooling is installed)

Emission sound pressure level >80 dB(A), according to DIN EN ISO 11200

Oil capacity of transmission end approx. 3.2 l

Oil viscosity ISO VG under DIN 51517-2 or -3, 320 mm²/s

Oil temperature max. 80 °C, set value 60–70 °C

Heat exchanger cooling water requirement approx. 1–2 l/min

Heat exchanger cooling water temperature min. +5 °C, max. +45 °C

Heat exchanger cooling water pressure min. 1.5 bar, max. 10 bar
