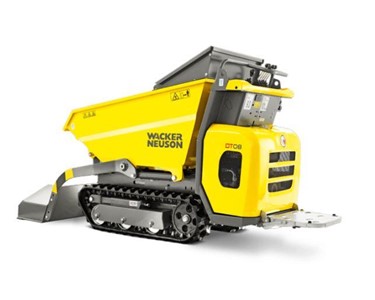

Track Dumpers 3,600RPM | DT08 Get latest price

Read more...

To contact Southern Cross Group about Track Dumpers 3,600RPM | DT08 use Get a quote.

At the same time, it is gentle on the subbase due to its wide tracks and the perfectly balanced center of gravity with low ground pressure. The sturdy travel gear design ensures durability and low wear.

Features:

• The hydrostatic drive enables easy and comfortable operation; powerful engines (gasoline or diesel).
• Robust crawler design guarantees long service life with low wear and tear.
• Optimal ratio between low net weight and maximum payload.
• Compact dimensions (79 cm), ideal for working in confined spaces and making its way through standard doors; high ground clearance.
• The rubber track and the optimum weight distribution reduce the ground pressure and prevent damage to delicate surfaces. The tailor-made cooling system guarantees safe operation of the machine in high-temperature conditions.

DT08 Technical specifications

Operating data

• Shipping weight - gasoline engine kg 520 580
• Shipping weight mit SLE kg 590
• Shipping weight - diesel engine kg 560 625
• Shipping weight mit SLE kg 630
• Payload max. kg 800 500
• Skip capacity level l 334 330
• Skip capacity heaped* l 387 400
• L x W x H * mm 1,660 x 790 x 1,203 1,545 x 790 x 1,240

Engine / Motor

• Engine performance - gasoline engine kW 6.7 6.7
• Engine performance - diesel engine kW 6.8 6.8
• at rpm rpm 3,600 3,600
• Travel speed max. km/h 4 4
• Gradeability % 36 36
