ATV 90cc Fan-Cooled 4-Stroke Engine | ...

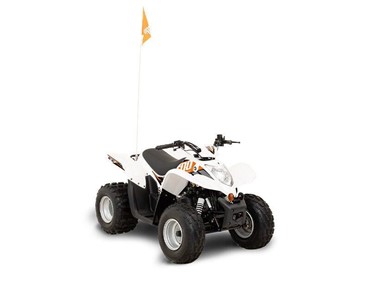

ATV 90cc Fan-Cooled 4-Stroke Engine | Xplorer XC 90

Watch your child’s eyes light up. The ARGO Youth XC Series is a new milestone of fun for kids 12 years of age and up. They’ve been watching you on your ATV for years and now it’s their turn to call the XC 90 their own. What. A. Thrill.

Receive 1-3 days from order

This youth ATV is a perfect way to introduce your young rider to the responsibilities of riding smart and safe, with the awareness of others. The XC 90 has many safety features straight from the factory, including an adjustable throttle for limiting speed, a four-foot hi-vis orange whip flag for added safety and a handlebar tether cord adults can pull as a remote shut-off switch to halt the fan-cooled, 4-stroke engine. Fun for all, all for fun.

Specifications:

DISPLACEMENT	90CC
ENGINE STROKE	4-STROKE
CYLINDER ARRANGEMENT	SOHC SINGLE-CYLINDER
VALVE CONFIGURATION	2 VALVE
FUEL SYSTEM	CARBURETOR
COOLING SYSTEM	FAN
BORE X STROKE	47 x 51.8 MM
COMPRESSION RATIO	10:01
START METHOD	ELECTRIC START/KICK START
IGNITION	CDI
OVER RIDE BUTTON	N/A
TRANSMISSION TYPE	CVT AUTOMATIC
FINAL DRIVE	CHAIN DRIVE
DIFFERENTIAL FUNCTION	N/A
DRIVE SYSTEM TYPE	2WD
ELECTRIC DIFF LOCK	N/A
GEAR SELECTION	F/N/R
REVERSE	YES
ENGINE BRAKING SYSTEM (EBS)	N/A
LENGTH	55.9 IN (1,420 MM)
WIDTH	35.6 IN (905 MM)
HEIGHT	36.6 IN (930 MM)
SEAT HEIGHT	25.6IN (650 MM)
GROUND CLEARANCE	5.9 IN (150 MM)
WHEELBASE	38.0 IN (965 MM)
TOWING CAPACITY	N/A
DRY WEIGHT	232 LBS (105.5 KG)
WET WEIGHT	260.1 LBS (118 KG)
FUEL TANK CAPACITY	1.4 GAL (5.3 LTR)
RIDER CAPACITY	1
SUSPENSION - FRONT	INDEPENDENT SINGLE A-ARM
SUSPENSION - REAR	SWING ARM
SUSPENSION TRAVEL - FRONT	2.8 IN (71 MM)
SUSPENSION TRAVEL - REAR	2.9 IN (74 MM)
BRAKE - FRONT	DUAL DRUM
BRAKE - REAR	HYDRAULIC DISC
FOOT BRAKE	N/A
TIRE SIZE (FRONT)	AT18X7-8
TIRE SIZE (REAR)	AT18X9-8
WHEEL RIM	STEEL
ELECTRIC POWER STEERING	NO
BATTERY	YUASA YTX5L-BS (4.2 AH)
FRONT RACK	N/A
REAR RACK	N/A
FRONT BUMPER	STANDARD
HITCH	N/A
WINCH	N/A
HAND GUARD	N/A
12V CHARGER	N/A
DAYLIGHT STRIP	N/A
SKID PLATE	PLASTIC
PASSENGER HANDLES	N/A
PASSENGER BACKREST	N/A
STORAGE	N/A
FRONT BRUSH GUARD	N/A
REAR BUMPER	N/A
FRONT RACK EXTENTION	N/A
REAR RACK EXTENTION	N/A
USB CHARGING PORT	N/A
REAR BOX STORAGE	N/A
INSTRUMENTATION	GEAR POSITION INDICATOR
LIGHTING	SINGLE 12V 35W HIGH/LOW BEAM, SINGLE WITH BRAKE LIGHT
WARRANTY	1 YEAR
COLOR	WHITE
