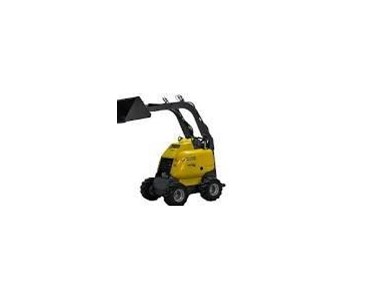

Tracked Mini Loader 27 hp | SM325-27W Get latest price

Read more...

To contact Southern Cross Group about Tracked Mini Loader 27 hp | SM325-27W use Get a quote.

Dimensions

• Overall width 850 - 1,050 mm
• Overall length 1,600 mm
• Overall height 1,200 mm
• Max operating height 4 in 1 2,080 mm
• Turning radius with 4 in 1 bucket 1,300 mm
• Angle of departure 25°
• Wheel base 800 mm
• Ground clearance 135 mm
• Dump height standard bucket 1,450 mm
• Dump height 4 in 1 bucket 1,835 mm
• Reach fully raised 4 in 1 bucket 800 mm
• Height to hinge pin 1,940 mm
• Machine width 4 in 1 bucket 1,050
• Hydraulic reservoir capacity 76 L
• Machine mass 984kg
• Warranty 5 years / 5,000hrs

Performance

• Engine 3TNV76
• Engine make Yanmar
• Engine horsepower 27 hp
• Hydraulic horsepower 26.8 hhp
• Hydraulic pumps 2 pumps
• Pump sizes 11 & 4cc
• Relief pressure (AUX) 3,200 psi (220 bar)
• Hydraulic output 47 L/m
• Max travel speed 7.5 km / h
• Rated lift capacity 325 kg WLL

Read less...
