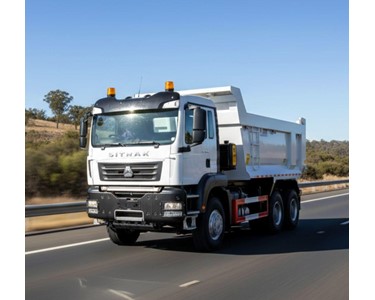

SITRAK - Tipper Truck | G7S 6X4 Get latest price

Read more...

To contact BCI Truck about SITRAK Tipper Truck | G7S 6X4 use Get a quote.

Driveline

• Engine
  • Model: MC13.54-61
  • Displacement (L): 12.42
  • Power Rating Hp: 540
  • Power rating kW/ (r/min): 397 @1800 rpm
  • Max torque Nm/ (r/min): 2500 @ 950-1400 rpm
  • Emission Rating: Euro 6
• Transmission
  • Model: ZF12TX2621TD
  • Forward gear ratio: 16.688,12.924,9.926,7.688,5.895,4.656,
  • 3.655,2.831,2.174,1.684,1.291,1.00
  • Reverse gear ratio: 15.537,12.033
  • PTO: Yes
• Clutch
  • Model: CH430 – 25 Diaphragm
  • Operation Mode: Hydraulic with Air Assist
• Rear Axles
  • Model: MCY13BES
  • Ratio: 3.08
  • Differential lock: Diff Lock equipped
• Front Axle
  • Model: VPD71DS (Disc)
• Suspension
  • Front: parabolic leaf
  • Rear: 8 air bag
• Braking System
  • Working pressure (kPa): 1250
  • Drive braking type: Dual circuit
  • Brake power adjust type: EBS+ESC+HSA
  • Parking brake type: Spring-applied, air-released brake
  • Assistant brake type: EVB
• Steering Gear
  • Model: Recirculating Ball
  • Ratio: 17~20:1
  • Max Pressure of Pump (kPa): 18300

Body

• Cabin
  • Model: G7S-P
  • Seats: 2
• Frame
  • Model: Trapezium frame
  • Main beam cross-section (mm): 300 × 80 × 8
  • Width of frame Assembly (mm) – Front: 940
  • Width of frame Assembly (mm) – Rear: 850
• Electric
  • Circuit type: dual
  • Voltage (V): 24
  • Generator power (kW): 3
  • Accumulator voltage / capacity (V/Ah): 2×12V / 240Ah

Dimensions

• Length (mm): 7492
• Width (mm): 2492
• Height (mm): 3471
• Wheel base (mm): 3600+700
• Wheel track – Front (mm): 2072
• Wheel track – Rear (mm): 1872
• Front overhang (mm): 1492
• Rear overhang (mm): 700+1000

Read less...
