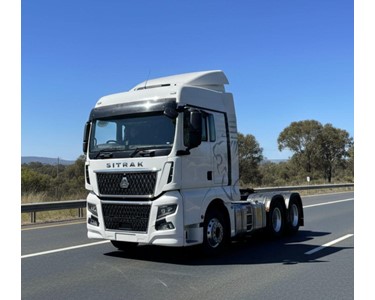

SITRAK - Prime Mover Truck | C9H 6X4 Get latest price

Read more...

To contact BCI Truck about SITRAK Prime Mover Truck | C9H 6X4 use Get a quote.

With a spacious cab and robust performance, it delivers comfort and reliability for fleet operators and owner-drivers. Contact BCI TRUCK today to request a tailored quote and learn more about this high-capacity prime mover.

Driveline

• Engine
  • Model: WP15H660E62A
  • Displacement (L): 15.3
  • Power Rating Hp: 660
  • Power rating kW/ (r/min): 480 @1800 rpm
  • Max torque Nm/ (r/min): 3200 @1200-1400 rpm
  • Emission Rating: Euro 6
• Transmission
  • Model: ZF12TX3221TO
  • Forward gear ratio: 12.924, 9.982, 7.688, 5.938, 4.565,
  • 3.526, 2.831, 2.187, 1.684, 1.301, 1, 0.772
  • Reverse gear ratio: 12.033,9.293
  • PTO: Yes
• Clutch
  • Model: CH430-25 diaphragm
  • Operation Mode: Hydraulic with air
• Rear Axles
  • Model: MCY13BES (Disc)
  • Ratio: 3.36
  • Ratio (Optional): 4.11
  • Differential lock: interwheel & interaxle diff. lock
• Front Axle
  • Model: VPD71DS, Optional VPD75ES
• Suspension
  • Front: parabolic leaf
  • Rear: 8 air bag
• Body
  • Cabin
  • Model: C9H-E
  • Seats: 2
• Frame
  • Model: Trapezium frame
  • Main beam cross-section (mm): 270 × 85 × 8
  • Width of frame Assembly (mm) – Front: 940
  • Width of frame Assembly (mm) – Rear: 760
• Electric
  • Circuit type: dual
  • Voltage (V): 24
  • Generator power (kW): 3
  • Accumulator voltage / capacity (V/Ah): 2×12/180
• Dimensions
  • Length (mm): 7042
  • Width (mm): 2496
  • Height (mm): 3980
  • Wheel base (mm): 3200+700
  • Wheel track – Front (mm): 2041
  • Wheel track – Rear (mm): 1830
  • Min ground clearance (mm): 250
  • Front overhang (mm): 1485
  • Rear overhang (mm): 700+950
