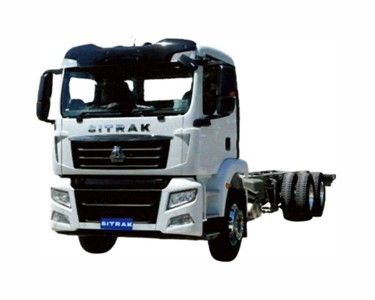

SITRAK - Cab Chassis Truck | G5S 6X4 Get latest price

Read more...

To contact BCI Truck about SITRAK Cab Chassis Truck | G5S 6X4 use Get a quote.

Driveline

• Engine
  • Model: MC07H.33-61
  • Displacement (L): 7.36
  • Power Rating Hp: 330
  • Power rating kW/ (r/min): 254 @ 2200rpm
  • Max torque Nm/ (r/min): 1322 NM @ 1200 – 1700 rpm
  • Compression Ratio (mm)
  • Emission Rating: Euro 6
• Transmission
  • Model: Allison 3200P
  • Forward gear ratio: 3.49, 1.86, 1.41, 1.00. 0.75, 0.65
  • Reverse gear ratio: 5.03
  • PTO: Yes
• Rear Axles
  • Model: MCY11BES (Disc)
  • Ratio: 5.29
  • Differential lock: Diff lock equipped
• Front Axle
  • Model: VPD71DS (Disc)
• Suspension
  • Front: parabolic leaf
  • Rear: 8 air bag
• Braking System
  • Working pressure (kPa): 1250
  • Drive braking type: Dual circuit
  • Brake power adjust type: EBS ESC
  • Parking brake type: Spring-applied, air-released brake
• Steering Gear
  • Model: Recirculating Ball
  • Ratio: 22.2~26.2:1
  • Max Pressure of Pump (kPa): 20000

Body

• Cabin
  • Model: G5S-M
  • Seats: 2
• Frame
  • Model: Trapezium frame
  • Main beam cross-section (mm): 280 * 80 * 8
  • Width of frame Assembly (mm) – Front: 965
  • Width of frame Assembly (mm) – Rear: 850
• Electric
  • Circuit type: Dual
  • Voltage (V): 24
  • Generator power (kW): 3
  • Accumulator voltage / capacity (V/Ah): 2X12v/180Ah

Dimensions

• Length (mm): 11030
• Width (mm): 2490
• Height (mm): 3075
• Wheel base (mm): 5600+700
• Wheel track – Front (mm): 2026
• Wheel track – Rear (mm): 1870
• Front overhang (mm): 1430
• Rear overhang (mm): 700+2600
