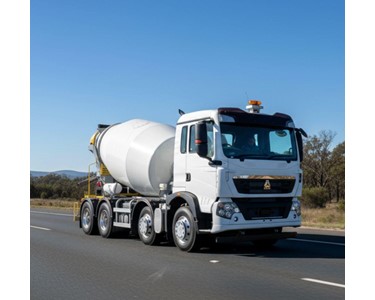

Concrete Mixer Truck | T5G 8X4 Get latest price

Read more...

To contact BCI Truck about Concrete Mixer Truck | T5G 8X4 use Get a quote.

Specifications

Driveline

• Engine
  • Model: MC07.33-50
  • Displacement (L): 6.87
  • Power Rating Hp: 330
  • Power rating kW/ (r/min): 240 @ 2300rpm
  • Max torque Nm/ (r/min): 1250 NM @ 1200 – 1800 rpm
  • Emission Rating: Euro 5
• Transmission
  • Model: Allison 3200P
  • Forward gear ratio: 3.49, 1.86, 1.41, 1, 0.75, 0.65
  • Reverse gear ratio: 5.03
  • PTO: Yes
• Clutch
  • Model: Hydraulic torque converter
  • Operation Mode: Hydraulic
• Rear Axles
  • Model: MCY11 (DISC)
  • Ratio: 5.29
  • Ratio (Optional): 3.08, 3.36, 3.7, 4.11, 4.63
  • Differential lock: Wheel Differential & Cross Lock

• Front Axle
  • Model: VPD060QB (Disc)
• Suspension
  • Front: parabolic leaf
  • Rear: 8 air bag
• Braking System
  • Working pressure (kPa): 1000
  • Drive braking type: Dual Circuit
  • Brake power adjust type: EBS ESC EBL ASR HSA
  • Parking brake type: Spring-applied, air-released brake
  • Assistant brake type: EVB
• Steering Gear
  • Model: ZF8098
  • Ratio: 23:01 (22.2~26.2)
  • Max Pressure of Pump (kPa): 15000

Body

• Cabin
  • Model: T5G-M
  • Seats: 2
• Frame
  • Model: Trapezium Frame
  • Main beam cross-section (mm): 300 * 80 * 8
  • Width of frame Assembly (mm) – Front: 965
  • Width of frame Assembly (mm) – Rear: 850

• Electric
  • Circuit type: Dual circuit
  • Voltage (V): 24
  • Generator power (kW): 2
  • Accumulator voltage / capacity (V/Ah): 2X12v/180Ah
• Dimensions
  • Length (mm): 8230
  • Width (mm): 2480
  • Height (mm): 3085
  • Wheel base (mm): 1800+2600+700
  • Wheel track – Front (mm): 2015
  • Wheel track – Rear (mm): 1850
  • Min ground clearance (mm): 320
  • Front overhang (mm): 1430
  • Rear overhang (mm): 700+1000

Other

• Weights
  • GVM (kg): 31000
  • Max Load of Front Axles (kg): 7000
  • Max Load of Rear Axles (kg): 18000
  • GCM (kg): 42000
  • Kerb Weight (kg): 7880 (Cab Chassis) / 10995 (with Mixer Bowl)
• Capability
  • Max Speed (km/h): 100
  • Min turning diameter (m): 20.5
  • Max climb gradient (%): 35
  • Fuel tank (L): 200
  • Approach Angle (o): 19
  • Departure Angle (o): 18

Read less...
