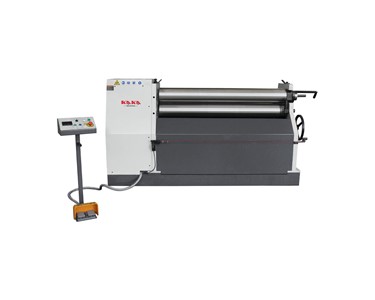

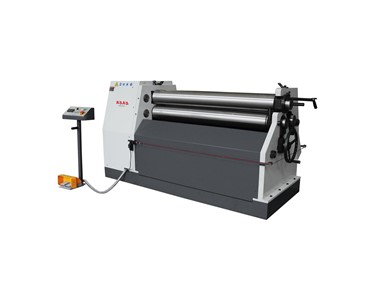

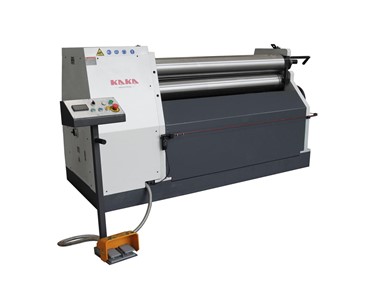

Name: Motorized Plate Curving Rolls HER-6103
Price: 26290.00 AUD
Availability: InStock

Rolls up to 6.5 mm mild steel over a 1550 mm width with fully hydraulic precision control.

Key Features

Heavy-duty hydraulic initial pinch plate curving roller, designed for professional sheet metal forming
Handles up to 6.5 mm mild steel across a 1550 mm width
Equipped with three 181 mm diameter rolls, all hydraulically driven for smooth and powerful operation
Includes digital readout for precise pinch roll positioning and adjustment
User-friendly foot pedal controls (forward/reverse, up/down) and single-side up/down for cone bending
Swivel top roll for easy workpiece removal and rigid, reliable construction
Emergency stop cable and protective controls for enhanced safety

Applications

Specifications

Model	HER-6103
Rolling width	1550 mm
Maximum rolling thickness	6.5 mm (mild steel)
Roller diameter	181 mm
Minimum rolling diameter	200 mm
Roller speed	4.2 rpm
Motor power	4.0 kW (415V-3PH)
Packing size	2670 x 1110 x 1470 mm
Net weight/Gross weight	2570 kg / 2650 kg
Roll Hardness	Up to HRC 55 (Steel-hardened)
Digital readout	Yes, tracks back roll position
Cone rolling	Included
