Hydraulic Plate Notcher HNM-6, Fixed Angle Price Guide: $8,890

Supplier: KANG Industrial

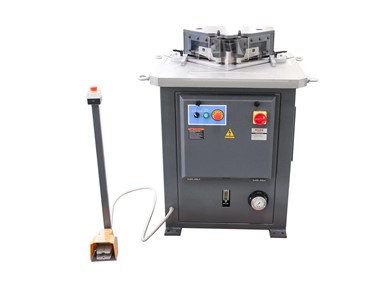

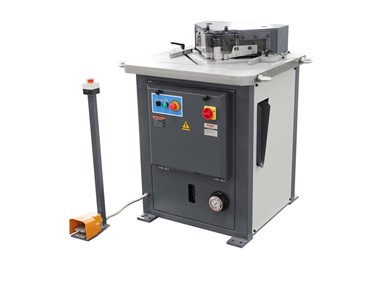

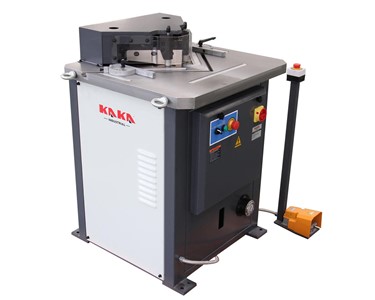

Hydraulic Plate Notcher HNM-6, Fixed Angle

This heavy-duty Hydraulic Plate Notcher offers precision fixed-angle cutting for thick sheet metal, ideal for industrial fabrication tasks.

Perfectly cuts 90° corner notches in thick sheet metal with industrial-grade precision.

The hydraulic fixed angle plate notcher is engineered for creating precise 90° corner notches in sheet metal, a key process for manufacturing metal boxes, trays, and enclosures. Built with a heavy cast-iron working table and robust hydraulic system, it delivers powerful, consistent operation for workshop and industrial production.

Key Features

Hydraulic fixed 90° angle notching for repeatability and accuracy.
Capable of cutting up to 6.5 mm thick plate with a blade length of 250 mm.
Stable and vibration-minimised operation, weighing 630 kg for burr-free edges.
Large 810 x 750 mm worktable with adjustable stops and guides for versatile setup.
Transparent blade guard for safe alignment and improved operator visibility.
Integrated emergency stop on foot pedal for enhanced safety.
Heavy-duty build quality for long service life.

Included Standard Items

Cutting blade set
Transparent blade guard
Foot pedal

Technical Specifications

Model	HNM-6
Cutting Angle	90°
Max. Cutting Length	250 mm
Max. Cutting Thickness	6.5 mm
Number of Strokes per Minute	24
Table Size	810 x 750 mm
Motor Power	4 kW
Motor Speed	1440 rpm
Oil Tank Volume	35 L
Max. Working Pressure	12 MPa
Packing Size	1010 x 850 x 1370 mm
Net/Gross Weight	630 / 675 kg

To contact KANG Industrial about Hydraulic Plate Notcher HNM-6, Fixed Angle use Get a quote.
