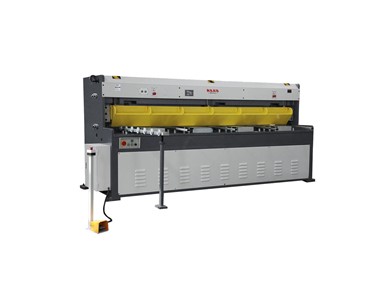

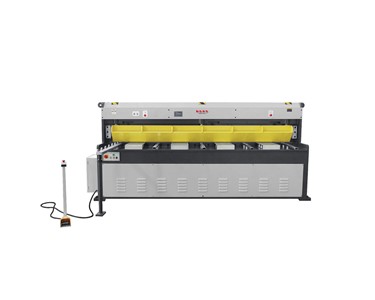

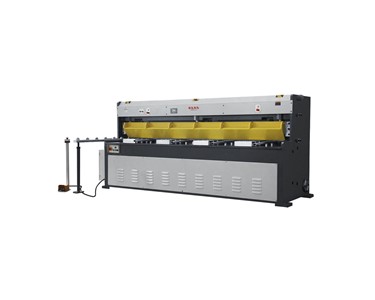

High-precision hydraulic cutting for 3050 mm sheets up to 6.5 mm thick.

The hydraulic guillotine shear is engineered for versatility and durability in industrial settings, delivering accurate cuts in mild and stainless steel. With high-power operation, advanced safety features, and easy-to-use controls, this machine streamlines metalworking workflows while ensuring operator safety and product reliability.

Key Features

Maximum cutting length: 3050 mm
Handles mild steel up to 6.5 mm thick and stainless steel up to 4.0 mm
Heavy-duty all-steel frame construction for long-term durability
High-carbon/chrome blades: 2-edge top and 2-edge bottom (indexable for extended usability)
Manual blade clearance adjustment to optimise performance on different materials
Shadow-line lighting for accurate straight cuts and reduced waste
Hydraulic clamping for enhanced cutting quality
Full-length finger guard and emergency stops for safety
Ball transfer plates for easy loading of heavy sheets
Rear-mounted safety lights
NC motorised backgauge (servo motor) with touch screen for precision control
Quiet, centrally located hydraulic system for low-noise performance
Compact control panel for ergonomic operation
Auto and inch-mode cutting options

Standard Inclusions

150 cm squaring arm with dual inch/metric scale inlay
Shadow line system
Material support and drop-back chuter
Four 610 mm front support arms
Hydraulic hold-downs with anti-mar neoprene
Removable safety foot pedal
Full-length viewable finger guard
Upper and bottom blade sets (4-edge each)

Applications

Metal fabrication shops
Manufacturing facilities
Automotive and construction industries
Signage and HVAC fabrication
Engineering workshops

Technical Specifications

Model	HQ11-12003
SKU	186204
Max cutting length	3050 mm
Max cutting thickness	6.5 mm (mild steel), 4.0 mm (stainless steel)
Shearing angle	2°
Strokes per minute	12
Motor power	15 kW, 415V
Backgauge	920 mm (motorised, servo-controlled)
Packing size (L x W x H)	4130 x 2100 x 1900 mm
Net/Gross Weight	6095 / 6245 kg

To contact KANG Industrial about Kang industrial Hydraulic Guillotine HQ11-12003 use Get a quote.
