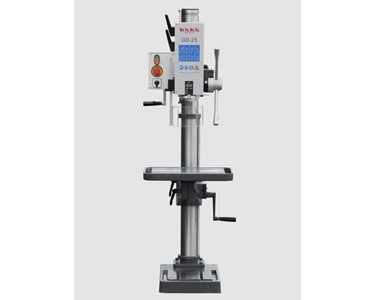

Industrial Pedestal Drill Press GD-25

Industrial Pedestal Drill Press GD-25 Price Guide: $3,135

Supplier: KANG Industrial

Industrial Pedestal Drill Press GD-25

Industrial Pedestal Drill Press GD-25

Industrial Pedestal Drill Press GD-25

The Industrial Grade Pedestal Drill Press GD-25 is a robust, gear head vertical drill designed for high-precision and heavy-duty industrial drilling applications.

Geared head system delivers high torque and speed versatility for heavy-duty, precise industrial drilling.

Key Features

Geared head system for high torque and efficient speed transitions
Built-in drilling depth gauge for precision and repeatability
Interlocked spindle safety guard and emergency stop for enhanced safety
360° rotating table and tilting head for drilling awkward parts
8-speed selection (105–2900 rpm) to handle a range of drilling tasks
Sturdy 100mm diameter column for reduced flexing and greater accuracy
Rack and crank handle for easy height adjustment
T-slotted base for securing larger materials
Includes keyed drill chuck arbour, drill drift, and safety guard
Digital depth reader included

Technical Specifications

Model	GD-25
Maximum drilling diameter	25 mm
Spindle taper	MT3
Spindle travel	125 mm
Tapping capacity	M10 (Steel) / M16 (Cast Iron)
Motor power	0.65/0.9 kW
Spindle Speeds	105, 210, 350, 445, 700, 890, 1450, 2900 rpm
Column diameter	100 mm
Table rotation	360°
Packing size	167 x 57 x 72 cm
Net/Gross weight	210 kg / 245 kg
Voltage	415V

Applications

Industrial maintenance and repair operations
Precision drilling for manufacturing and fabrication workshops
Suitable for a variety of metals and heavy-duty drilling tasks

To contact KANG Industrial about Industrial Pedestal Drill Press GD-25 use Get a quote.

Key Features

Geared head system for high torque and efficient speed transitions
Built-in drilling depth gauge for precision and repeatability
Interlocked spindle safety guard and emergency stop for enhanced safety
360° rotating table and tilting head for drilling awkward parts
8-speed selection (105–2900 rpm) to handle a range of drilling tasks
Sturdy 100mm diameter column for reduced flexing and greater accuracy
Rack and crank handle for easy height adjustment
T-slotted base for securing larger materials
Includes keyed drill chuck arbour, drill drift, and safety guard
Digital depth reader included

Technical Specifications

Model	GD-25
Maximum drilling diameter	25 mm
Spindle taper	MT3
Spindle travel	125 mm
Tapping capacity	M10 (Steel) / M16 (Cast Iron)
Motor power	0.65/0.9 kW
Spindle Speeds	105, 210, 350, 445, 700, 890, 1450, 2900 rpm
Column diameter	100 mm
Table rotation	360°
Packing size	167 x 57 x 72 cm
Net/Gross weight	210 kg / 245 kg
Voltage	415V

Applications

Industrial maintenance and repair operations
Precision drilling for manufacturing and fabrication workshops
Suitable for a variety of metals and heavy-duty drilling tasks

To contact KANG Industrial about Industrial Pedestal Drill Press GD-25 use Get a quote.
