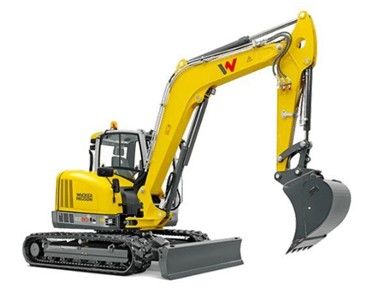

Compact Excavators 2,500 rpm | EZ80 Get latest price

Read more...

To contact Southern Cross Group about Compact Excavators 2,500 rpm | EZ80 use Get a quote.

Working along walls and other boundaries is no problem because there is no machine rear overhang. Even on narrow urban construction sites, the EZ80 proves itself with its compact dimensions. Moreover, it is impressive due to up to 20% less fuel consumption and thus significantly reduced operating costs.

Features:

• Precise and sensitive operation thanks to the Load Sensing Hydraulic system with LUDV (load-independent flow control).
• Programmable presets by pressing a button, jog dial control system for float volumes per attachment tool – safe and recall.
• Maintenance made easy: the tiltable cabin and the removable chassis cover provide quick and easy access, diagnostic tools offer further support.
• Meets highest quality standards: High-quality materials and excellent workmanship ensure a long service life.

Operating data

• Shipping weight min. 7,588 kg
• Operating weight 7,918 - 9,208 kg
• Biting force max. 43.7 kN
• Breakout force max. 68 kN
• Digging depth max. 4,169 mm
• Dumping height 4,587 - 4,749 mm
• Digging radius max. 7,190 mm
• Superstructure slewing speed 9 1/min
• L x W x H 6,939 x 2,250 x 2,562 mm
• Fuel tank capacity 85 l

Engine / Motor

• Engine / Motor manufacturer Perkins
• Engine / Motor type 404D-22T
• Engine / Motor Water-cooled 4-cylinder turbo diesel engine
• Displacement 2,216 cm3
• RPM / speed 2,500 rpm
• Engine performance acc. to ISO 36.4 kW

Battery

• Battery 88 Ah

Hydraulic system

• Duty pump axial piston pump
• Flow rate 160 l/min
• Operating pressure for working and traction hydraulics 300 bar
• Operating pressure slewing gear 240 bar
• Hydraulic oil tank 92 l

Undercarriage

• Travel speed max. 4.4 km/h
• Chain width 450 mm
• Ground clearance 357 mm

Dozer Blade

• Width 2,250 mm
• Height 504 mm
• Stroke above ground 474 mm
• Stroke below ground 523 mm

Sound level

• Sound level (LwA) acc. to 2000/14/EC 97 dB(A)
• Cabin - specified sound pressure level LpA acc. to ISO 6394 79 dB(A)

Read less...
