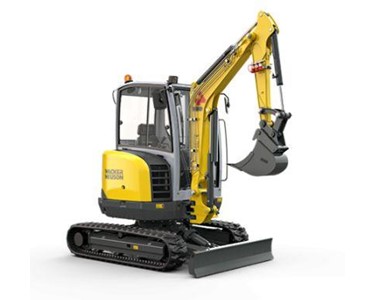

Compact Excavators 2,500 rpm | EZ26 Get latest price

Read more...

To contact Southern Cross Group about Compact Excavators 2,500 rpm | EZ26 use Get a quote.

The wide field of vision around the machine from the cab increases the safety of the operator and the construction site environment. It also ensures constant control of the working environment. The simultaneously high performance and high operating comfort thanks to the wide access, jog-dial operating system and clear machine display make the EZ26 a feel-good zone for the operator.

Features:

• The re-designed cabin of the EZ26 is ergonomical and spacious.
• Large, double-sided sliding windscreen.
• Magnetic rotating light (LED) which can be quickly attached and released at any time. The LED light is characterized by high luminosity and low power consumption.
• Zero tail swing for working in tight and confined spaces.
• Optional Vertical Digging System (VDS) and EASY LOCK.

Operating data

• Shipping weight 2,469 - 3,161 kg
• Operating weight 2,571 - 3,262 kg
• Biting force max. 15.3 kN
• Breakout force max. 22.5 kN
• Digging depth max. 2,744 mm
• Dumping height 2,840 - 3,087 mm
• Digging radius max. 4,806 mm
• Superstructure slewing speed 10 1/min
• L x W x H 4,266 x 1,570 x 2,414 mm
• Tank capacity 36 l

Engine / Motor

• Engine / Motor manufacturer Yanmar
• Engine / Motor type 3TNV76
• Engine / Motor water-cooled 3-cylinder diesel engine
• Displacement 1,116 cm3
• RPM / speed 2,500 rpm
• Engine performance output to ISO 15.8 kW

Battery

• Battery 44 Ah

Hydraulic system

• Duty pump double variable- & two-gear pump
• Max. flow rate 30.5 + 30.5 l/min
• Max. flow rate 20.2 + 7.2 l/min
• Operating pressure for working and traction hydraulics 225 bar
• Operating pressure slewing gear 206 bar
• Hydraulic oil tank 26.5 l

Undercarriage

• Travel speed max. 3.8 km/h
• Chain width 300 mm
• Ground clearance 277 mm

Dozer Blade

• Width 1,570 mm
• Height 290 mm
• Stroke max. above ground 380 mm
• Stroke max. below ground 419 mm

Sound level

• Sound level (LwA) acc. to 2000/14/EC 93 dB(A)
• Cabin - specified sound pressure level LpA acc. to ISO 6394 79 dB(A)

Read less...
