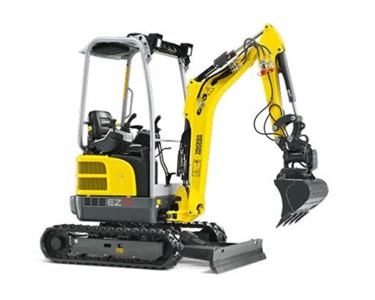

Compact Excavators 2,200 rpm | EZ17 Get latest price

Read more...

To contact Southern Cross Group about Compact Excavators 2,200 rpm | EZ17 use Get a quote.

The compact and durable design guarantees a long service life. The EZ17 offers the operator an unrestricted field of vision through the roof window.

Features:

• Best performance Zero Tail model in its class with a large volume diesel engine and LUDV (Load Sensing System).
• Zero tail swing for working in tight and confined spaces.
• New cooling system promise high performance also in high surrounding temperatures of up to 45 °C.
• Compact, robust design ensures longer operating life.
• Extremely large field of vision through top window.

Operating data

• Shipping weight min. 1,595 kg
• Operating weight 1,724 - 1,950 kg
• Biting force max. 9.1 kN
• Breakout force max. 18.7 kN
• Digging depth max. 2,486 mm
• Dumping height 2,436 - 2,550 mm
• Digging radius max. 4,050 mm
• Superstructure slewing speed 10 1/min
• L x W x H 3,584 x 990 x 2,362 mm
• Tank capacity 22 l

Engine / Motor

• Engine / Motor manufacturer Yanmar
• Engine / Motor type 3TNV76
• Engine / Motor Water-cooled 3-cylinder diesel engine
• Emission standards stage 5
• Displacement 1,116 cm3
• RPM / speed 2,200 rpm
• Engine performance output to ISO 13.8 kW

Battery

• Battery 44 Ah

Hydraulic system

• Flow rate 39.6 l/min
• Operating pressure for working and traction hydraulics 240 bar
• Operating pressure Slewing gear 150 bar
• Hydraulic oil tank 21 l

Undercarriage

• Travel speed max. 4.8 km/h
• Chain width 230 mm
• Ground clearance 156 mm

Dozer Blade

• Width 1,300 mm
• Height 230 mm

Sound level

• Sound level (LwA) acc. to 2000/14/EC 93 dB(A)
• Cabin - specified sound pressure level LpA acc. to ISO 6394 79 dB(A)
