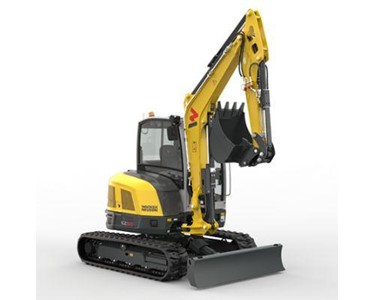

For example, the powerful engine in the EZ50 meets the stage 5 exhaust emission standards. In terms of operator-friendliness, the excavator is impressive. The intuitive operating concept and excellent view of the work area contribute to the easy and comfortable operation of the machine. The EZ50 is also a zero-tail excavator and is well suited for working in narrow spaces.

Features:

• 3-point kinematics for more breakaway force, insertion depth and dumping height
• Four auxiliary control circuits, high lifting and excavation power and thus, rapid work cycles – performance is emphasized here!
• Comfortable and fatigue-free joystick control thanks to Load Sensing Flow Sharing

Operating data

• Shipping weight 4,617 - 5,454 kg
• Operating weight 4,847 - 5,685 kg
• Biting force max. 24.8 kN
• Breakout force max. 36.8 kN
• Digging depth max. 3,667 mm
• Superstructure slewing speed 9 1/min
• L x W x H 5,467 x 1,960 x 2,555 mm
• Fuel tank capacity 80 l

Engine / Motor

• Engine / Motor manufacturer Perkins diesel engine
• Engine / Motor type 403J-E17T
• Engine / Motor Water-cooled 3-cylinder turbo engine
• Emission standards stage 5
• Rated voltage 12 V
• Displacement 1,663 cm3
• RPM / speed 2,000 rpm
• Engine performance 32.5 kW

Battery

• Battery 77 Ah
• Rated voltage 12 V

Hydraulic system

• Duty pump 1 axial piston pump
• Flow rate max. 126 l/min
• Operating pressure for working and driving hydraulics 245 bar
• Operating pressure Slewing gear 209 bar

Undercarriage

• Travel speed Max. 4.4 km/h
• Chain width 400 mm
• Ground clearance 305 mm

Dozer Blade

• Width 1,960 mm
• Height 370 mm
• Stroke Above subgrade 415 mm
• Stroke Below subgrade 455 mm

Sound level

• Sound level (LwA) 97 dB(A)
• Cabin - specified sound pressure level LpA 77 dB(A)
