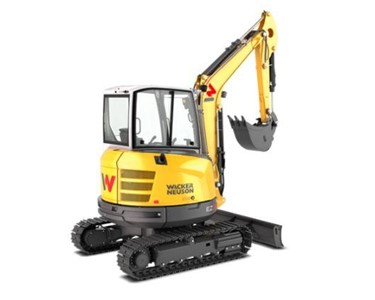

Compact Excavators 2,400 rpm | EZ36 Get latest price

Read more...

To contact Southern Cross Group about Compact Excavators 2,400 rpm | EZ36 use Get a quote.

Features:

• Performance meets maximum efficiency
• User-friendly operating concept and comfort cabin
• VDS - Working in the slope - without coming to falter
• Zero Tail - when it gets tight
• Unrestricted maintenance and service access

Operating data

• Shipping weight min. 3,530 kg
• Operating weight 3,720 - 4,636 kg
• Biting force max. 21.1 kN
• Breakout force max. 35 kN
• Digging depth max. (long dipperstick) 3,497 mm
• Dumping height 3,336 - 3,336 mm
• Digging radius max. (long dipperstick) 5,743 mm
• Superstructure slewing speed 9.5 1/min
• L x W x H 5,503 x 1,750 x 2,491 mm
• Fuel tank capacity 44 l

Engine / Motor

• Engine / Motor manufacturer Yanmar Diesel engine
• Engine / Motor type 3TNV88F
• Engine / Motor water-cooled 3-cylinder suction engine
• Emission standards stage 5
• Rated performance 18.2 kW
• Displacement 1,642 cm3
• RPM / speed 2,400 rpm
• Engine performance POWER Mode 18.2 kW

Battery

• Battery 71 Ah

Hydraulic system

• Duty pump 2 axial piston pumps / 2 gear pumps
• Max. flow rate 42.5 + 42.5 l/min
• Max. flow rate 23.8 + 11.3 l/min
• Operating pressure for working and driving hydraulics 240 bar
• Operating pressure Drehwerk 195 bar

Undercarriage

• Travel speed max. 4.7 km/h
• Chain width 300 mm
• Ground clearance 251 mm

Dozer Blade

• Width 1,750 mm
• Height 357 mm
• Stroke dozer blade above ground 393 mm
• Stroke dozer blade below ground 505 mm
