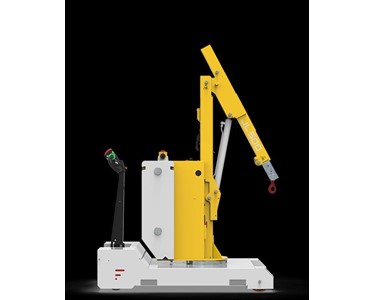

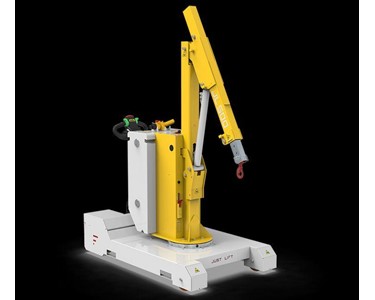

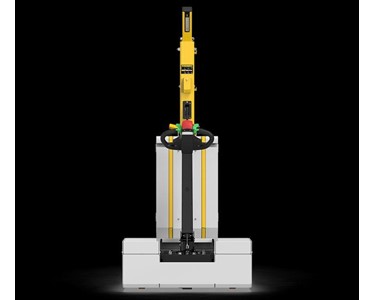

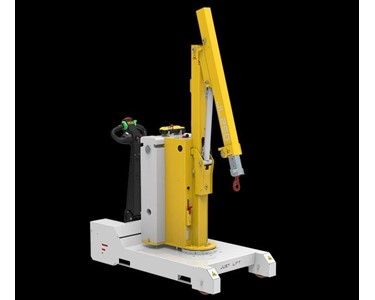

Just Lift’s JL250 counterbalance floor mini-crane is an innovative hydraulic lifting solution, compact and ergonomic, designed to simplify all operations related to the lifting and handling of light loads up to 250 kg. Its small dimensions make it extremely versatile and suitable for use even along narrow aisles. One of its crucial features is its rotation system: thanks to a steel turntable ball bearing, the 270° rotative movement is made fluid and light. The Just Lift JL250 crane has been designed and studied with the aim of accelerating and optimizing all operations related to lifting and logistics, increasing productivity and always paying the utmost attention to operators’ safety and ergonomics.

Hydraulic folding mini-crane

• Electric tiller driving system
• Arm  movements controlled by wired control
• Hydraulic lifting and arm extension
• Anti-tipping system as standard

270° range of action

• The Just Lift JL250 counterbalanced crane is equipped with a turntable ball bearing that makes rotation up to 270° fluid and fast, with steps for locking at 45° intervals.

Lifting capacity in the various steps of the arm extension

• The Just Lift JL250 counterweight crane has a capacity of 250 kg in the first step, 160 kg in the second step and 130 kg in the third (the third step is an additional extension to be added manually). These data are intended on flat ground (0% slope), with the arm parallel to the floor.

Chains

• Just Lift offers certified lifting chains. The maximum length is 1.5 m, adjustable thanks to the practical shorteners. They are available with 2 and 4 arms with GKN or BKG end hooks according to your needs.

Extension

• On all models it is possible to equip an additional extension to the arm to reach further.

Specifications

• Model name: JL250
• Certification CE
• Maximum lifting capacity 250 kg
• Driving type Tiller
• Power supply Battery
• Parking brake Mechanic
• Weight (without batteries) 610 kg
• Weight (with batteries) 680 kg
• Length 1840 mm
• Width 780 mm
• Height of driving controls 1217 mm
• Total height 2310 mm
• Steering diameter 1050 mm
