The JL 750 Hydraulic Ergonomic Folding Crane offers a powerful lifting capacity of up to 800 kg for versatile industrial applications. Designed with ergonomic features and a folding mechanism, it ensures easy storage and safe operation. This hydraulic folding crane enhances workplace safety by reducing manual lifting strain. Its robust construction guarantees reliable performance in warehouses and factories. Upgrade your lifting operations with the JL 750 ergonomic folding crane for efficient and safe heavy load handling.

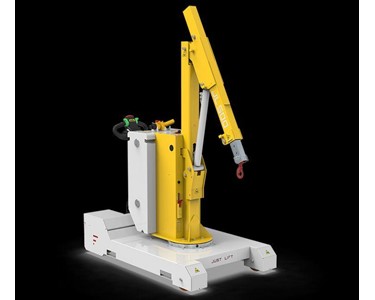

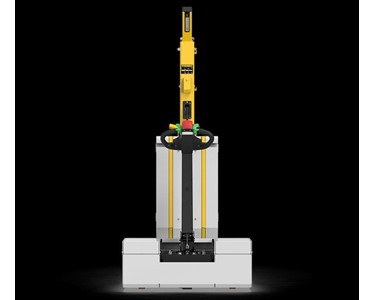

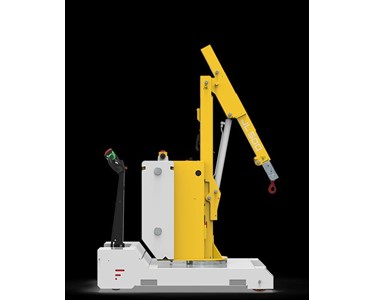

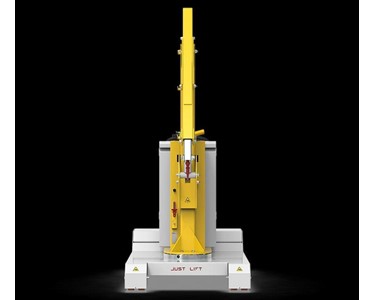

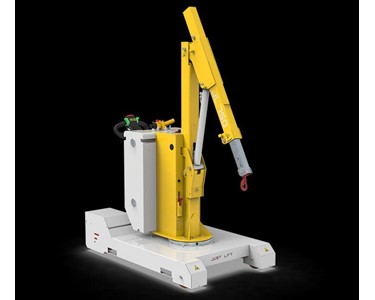

JL 750 Hydraulic ergonomic folding crane lifting capacity up to 800 kg

Just Lift’s JL750 counterbalanced lifting equipment with hydraulic folding arm is an excellent combination of power and versatility. It has been created to facilitate the lifting and movement of weights up to 800 kg, with dimensions also suitable for use in confined spaces. The rotation of the column is extremely fluid and light, thanks to the special steel turntable ball bearing ring. Just Lift’s JL750 mini floor crane has been designed to speed up and optimize all operations related to lifting and logistics, increasing productivity and at the same time guaranteeing maximum safety and comfort for the operators.

Hydraulic movable lifting equipment

• Electric tiller driving system
• Arm  movements controlled by wired control
• Hydraulic lifting and arm extension
• Anti-tipping system as standard

270° range of action

• The Just Lift JL250 counterbalanced crane is equipped with a turntable ball bearing that makes rotation up to 270° fluid and fast, with steps for locking at 45° intervals.

Lifting capacity in the various steps of the arm extension

• The chart represents the various lifting capacity for the main positions of the arm of the Just Lift JL750 counterbalanced crane. These data are intended on flat ground (0% slope).

Chains

• Just Lift offers certified lifting chains. The maximum length is 1.5 m, adjustable thanks to the practical shorteners. They are available with 2 and 4 arms with GKN or BKG end hooks according to your needs.

Extension

• On all models it is possible to equip an additional extension to the arm to reach further.

Specifications

• Model name JL750
• Certification CE
• Maximum lifting capacity 800 kg
• Driving type Tiller
• Power supply Battery
• Parking brake Mechanic
• Weight (without batteries) 1200 kg
• Weight (with batteries) 1266 kg
• Length 1665 mm
• Width 980 mm
• Height of driving controls 1302 mm
• Total height 2289 mm
• Steering diameter 1050 mm
