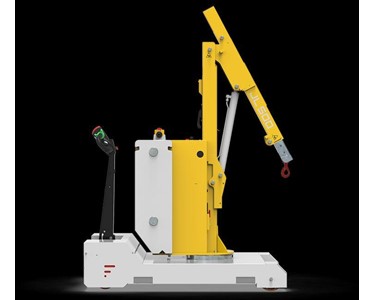

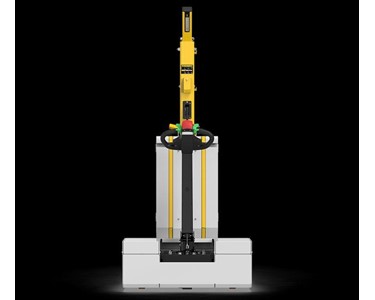

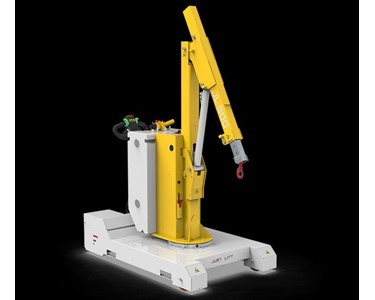

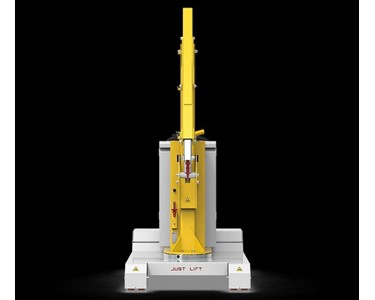

JL 500 Hydraulic folding floor crane lifting capacity up to 550 kg

JL500, the hydraulic folding arm crane from Just Lift, is a compact and ergonomic option for lifting loads of any size, weighting up to 550 kg. This lifting equipment is designed to fit into tight spaces and narrow aisles thanks to its small size. A notable advantage is the steel turntable ball bearing ring at the base of the column, which makes its rotation smooth on an angle of 270°, within 45° steps. Just Lift’s JL500 mobile crane has been created to simplify lifting and logistics, improving productivity, always with operators’ safety and comfort in mind.

Hydraulic mini floor crane

• Electric tiller driving system
• Arm  movements controlled by wired control
• Hydraulic lifting and arm extension
• Anti-tipping system as standard

270° range of action

• The Just Lift JL500 counterbalanced crane is equipped with a turntable ball bearing that makes rotation up to 270° fluid and fast, with steps for locking at 45° intervals.

Lifting capacity in the various steps of the arm extension

• The chart represents the various lifting capacity for the main positions of the arm of the Just Lift JL500 counterbalanced crane. These data are intended on flat ground (0% slope).

Chains

• Just Lift offers certified lifting chains. The maximum length is 1.5 m, adjustable thanks to the practical shorteners. They are available with 2 and 4 arms with GKN or BKG end hooks according to your needs.

Extension

• On all models it is possible to equip an additional extension to the arm to reach further.

Specifications

• Model name JL500
• Certification CE
• Maximum lifting capacity 550 kg
• Driving type Tiller
• Power supply Battery
• Parking brake Mechanic
• Weight (without batteries) 1080 kg
• Weight (with batteries) 1146 kg
• Length 1665 mm
• Width 980 mm
• Height of driving controls 1302 mm
• Total height 2289 mm
• Steering diameter 1050 mm
