Multi Step Variable Load Bank 200kW | Single & Three Phase Compatible Price Guide: $13,500

Supplier: Able Sales Australia

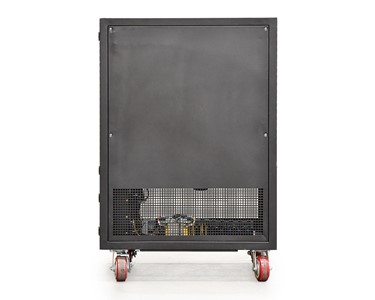

Multi Step Variable Load Bank 200kW | Single & Three Phase Compatible

A high-capacity, adjustable 200kW load bank for single and three-phase applications, ideal for testing and maintaining power systems with precision and reliability.

Key Features

Power rating: 200,000 Watts (200kW)
Multi-step variable load, adjustable from 1kW to 200kW
Compatible with both single-phase (240V) and three-phase (415V) systems
Force-air vertical cooling for efficient heat dissipation
Manual control via push button interface
Digital meter displays voltage, current, power, and frequency
Load accuracy: ±5%
Copper bus bar for robust wire connections
Overheating and overvoltage protection, emergency stop button, and buzzer alarm
Continuous work mode with IP54 rated protection (suitable for light outdoor use)
Portable design with four wheels for mobility

Technical Specifications

Power	200,000 Watts / 200 kW
Phase / Power Factor	Single & Three Phase, 1 PF
Voltage	240V (Single Phase) / 415V (Three Phase)
Frequency	50/60 Hz
Cooling Method	Force-air vertical cooling
Controller	Manual control by push button
Noise Level	75dB
Working Temperature	-10°C to 50°C
Compliance	IP54 (Light Outdoor Use)
Weight (KG)	295 kg
Dimensions (L x W x H) (cm)	94 x 105 x 142
Shipping Weight	295 kg
Shipping Dimensions (L x W x H) (cm)	94 x 105 x 94
Insulation Class	F
Work Mode	Continuous
Mobility	Four wheels
Operating Humidity	=95%
Altitude	=2500 metres

Additional Information

Load element constructed from stainless steel resistors for reliability and longevity.
Quick and easy bus bar wire connections.
Includes safety features such as an emergency stop and buzzer alarm for overheating or overvoltage.
Accurate performance measurement with digital metering of vital electrical parameters.

To contact Able Sales Australia about Multi Step Variable Load Bank 200kW | Single & Three Phase Compatible use Get a quote.
