Multi Step Variable Load Bank 15kW | Single & Three Phase Compatible Price Guide: $3,900

Supplier: Able Sales Australia

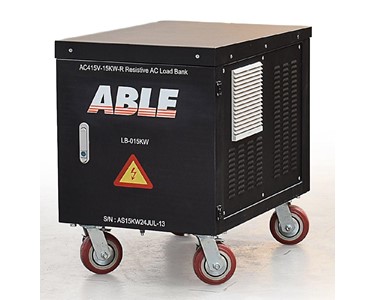

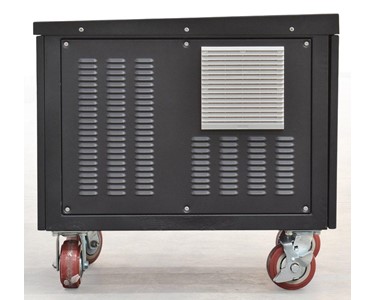

Multi Step Variable Load Bank 15kW | Single & Three Phase Compatible

This 15kW Multi Step Variable Load Bank is designed for rigorous testing of generators and electrical systems, offering compatibility with both single and three-phase applications.

Main Features

Power rating: 15,000 Watts (15kW), with adjustable load steps from 1kW to 15kW
Compatible with both single phase (240V) and three phase (415V) applications
Manual push-button step control
Stainless steel resistor load elements
Digital metering for voltage, current, power, and frequency
Copper bus bar wire connections
Continuous operation work mode
Includes overheating/buzzer alarm, over voltage protection, and emergency stop button
IP54 compliant for light outdoor use
Fitted with four wheels for easy mobility

Specifications

Power	15,000 Watts
Phase/Power Factor	Single & Three Phase \| 1 PF
Voltage	240V (Single Phase), 415V (Three Phase)
Frequency	50/60 Hz
Cooling Method	Force-air vertical cooling
Controller	Manual control by push button
Noise Level	75 dB
Working Temperature	-10°C to 50°C
Compliance	IP54 (Light Outdoor Use)
Insulation Class	F
Load Steps	1kW, 2kW, 2 × 5kW (1-15kW adjustable)
Load Accuracy	±5%
Work Mode	Continuous
Weight	82 kg (Shipping Weight: 98 kg)
Dimensions	76 cm (L) × 51 cm (W) × 53 cm (H)
Shipping Dimensions	76 cm (L) × 56 cm (W) × 86 cm (H)
Mobility	Four wheels

Protections & Safety

Overheating and over voltage protection
Emergency stop button
Overheating buzzer alarm
