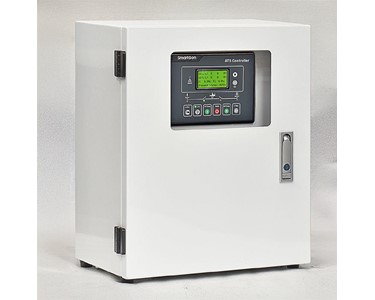

Automatic Transfer Switch Single Phase 125AMP Price Guide: $1,800 Get latest price

• Power Capacity: 125 AMP, single phase
• Starter System: 2 Wire Trigger / Auto / Manual
• Controller: Smartgen HAT600 ATS Controller
• Battery: 12V Charger included
• Chassis: Modular steel, key lockable cabinet, padlock isolation for enhanced security

This automatic transfer switch (ATS) allows for safe and automatic switching between your primary mains electricity supply and a secondary standby generator. The ATS continuously monitors the incoming mains supply voltage. When voltage drops or fails, the ATS disconnects the mains and starts up the generator. Once stable generator power is available, the load is transferred automatically. After mains are restored, the system switches back and shuts the generator down.

• Prevents simultaneous connection of mains and generator.
• Detects 2 ways-3 phase, 2 ways-1 phase, or 2 ways-2 phase voltages.
• Identifies abnormal voltage conditions such as brownout, loss of electricity, over or under voltage.
• User-defined switching delay (0-60 seconds) and generator start delay (0-90 seconds).
• Modular design for easy mounting and maintenance.

• Switching Delay: 0–60 seconds, based on mains loss.
• Generator Start Delay: 0–90 seconds, for generator start/stop operations.
• Modular, sturdy configuration designed for easy installation and straightforward maintenance.
• Both key lockable cabinet and padlock isolation for secure operation.
