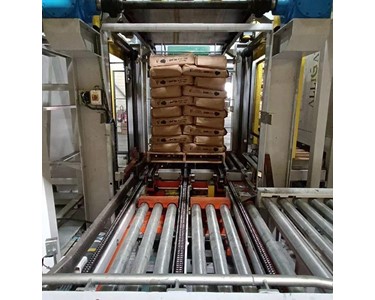

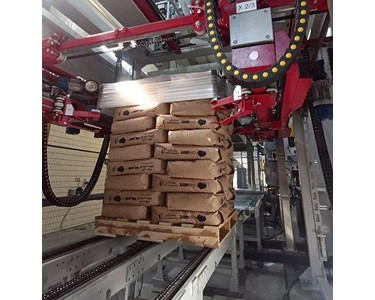

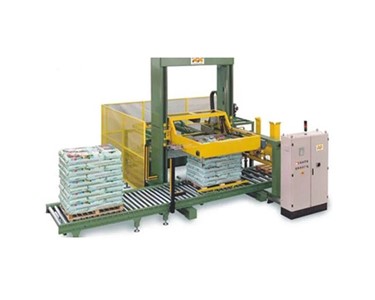

We specialize in Low-Level Palletizing. Here’s the premise behind the system—products on the infeed conveyor are rotated for correct orientation before reaching the row formation area. Completed rows are then pushed onto a layer-forming area, which might be a table, depending on the machine’s design.

The fully formed layer advances to a plate and is either lowered or raised to align with the stationary pallet or previous layer. The process repeats until the palletization is complete. Finished pallets move to the elevated pallet discharge conveyor.

From there, the palletized load is transported to storage. The cycle concludes when the pallet is removed from the conveyor.

Specifications

Type

• 1 in/1 out

Product size range

• 100mm – 600mm L
• 100mm – 600mm W
• 50mm – 400mm H

Payload

• 5Kg – 200kg

Speed

• 10-20 cases/min, bags – 20 bags/min

Layout type

• Customizable (with limitations)

Product to be handled

• Bags, cases, shrink packs, etc.

Features

• Costs less because it doesn't need a work platform
• Easy to reach parts make maintenance straightforward
• Fork truck operators can keep an eye on case infeed while handling pallets
• Perfect for working closely with case packers and sealers that are at the same height
• Low-level palletizers use less space, ideal for smaller facilities
• Their compact shape fits well in different production spaces
• Simple to install, which means less downtime getting started
• Easy access reduces the need for lots of material handling equipment, making operations smoother
• Can handle various product sizes, making it versatile for different loads
