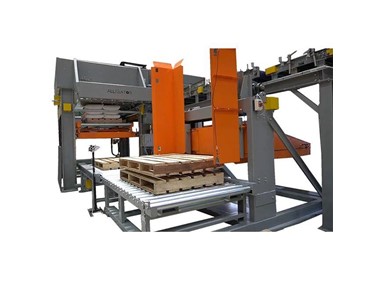

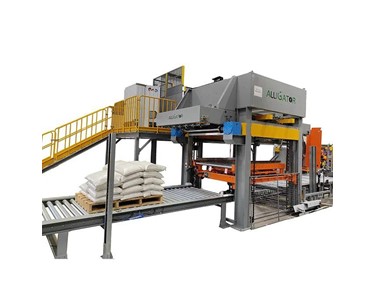

Our High-Level Push-Type Palletizer is sturdy, featuring a vertical frame that moves along a strong structure to support the pallet being built. An orienting device correctly positions bags from the filling line. They’re then arranged on a conveyor according to a set pattern, and each completed row moves to a holding area.

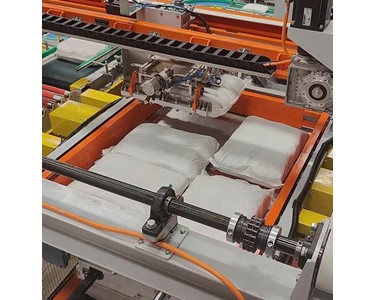

When a layer is finished, a pusher moves it over trapdoors that drop it onto the pallet, compacting it tightly. Then, the doors open to place the layer on the pallet, and the frame lowers to start the next layer. Flexible and versatile, our palletizer comes with a PLC system that stores different stacking patterns to suit different needs. It also includes a platform for easy access, a magazine for empty pallets, and conveyors for moving pallets in and out, meeting rigorous EC standards.

Specifications

Type

• 1 in/1 out

Product size range

• 100mm – 600mm L
• 100mm – 600mm W
• 50mm – 400mm H

Payload

• 5Kg – 200kg

Speed

• 40-50 cases/min, bags – 40 bags/min

Layout type

• Customizable (with limitations)

Product to be handled

• Bags, cases, shrink packs, etc.

Features:

• Best stacking quality
• High-speed and efficient stacking levels
• Advanced palletizing technology for optimized performance
• Seamless integration with upstream machines
• Rugged steel construction ensures durability over many years
• Easily accessible components for inspection, adjustments, and maintenance
• Variable Frequency Drive (VFD) control of motors for accurate, smooth, and refined motions
• Swift and precise turner with assistance for consistent rotation of longer and heavier products
• Continuous overhead row pusher with surface plates for gentle product handling and increased throughputs
• Quiet electric lift
• User-friendly touchscreen controller allowing easy changeover of palletizing patterns or SKUs
• Dispenser with a capacity of 10 to 12 pallets

Safety Features:

• Light curtains at full-load discharge
• Handrails, fences, and trapped key interlocking
• Automatic locks on the hoist
• Compliant with Category 3, Performance Level D, safety standards

Options:

• Sheet dispensers are available to help stabilize loads
• Elevating lifts available to match existing infeed or discharge
• Expanded pallet dispenser capacity up to 25 pallets or multiple dispensers
• Ability to create taller loads to maximize the shipment truck space
