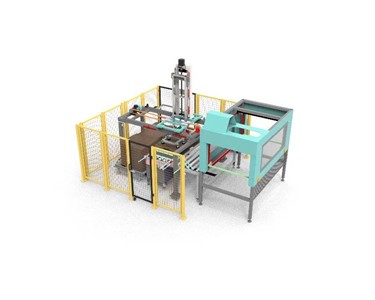

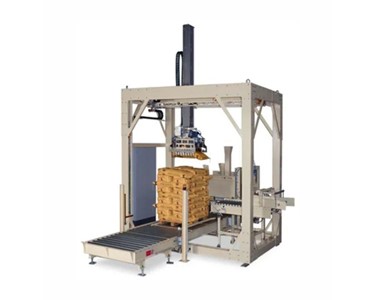

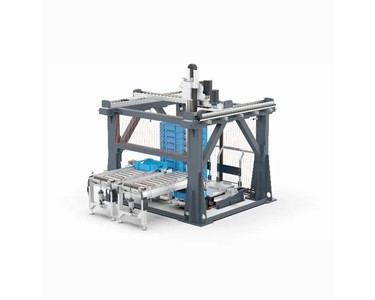

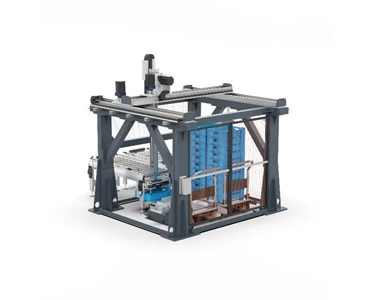

The Multi-Axis Gantry system picks up products from an infeed conveyor and places them in a specific pattern on pallets. It’s a cost-effective alternative to multi-axis robot palletizing.

Our Gantry Palletizer handles heavy products with precision and speed. It’s designed to work with multiple inputs and outputs at controlled speeds, managing up to four placements per minute. This flexibility allows it to handle different container sizes with ease. It also enables easy removal of full pallets, either manually or automatically, with various conveyor or shuttle options. Adding a finger-style pallet dispenser and slip sheet dispenser makes the process even smoother.

Its design pushes product rows onto a stripper plate, layering them onto the pallet. Each row is precisely placed, ensuring accuracy. Empty pallets come from the dispenser, and a slip sheet is added for stability.

When full, the pallet moves onto a conveyor for easy transport. The Gantry Palletizer is designed for efficiency and ease, fitting perfectly into modern industrial environments.

Specifications

Type

• 1 in/1 out, 2 in/2 out

Product size range

• 100mm – 1000mm L
• 100mm – 1000mm W
• 50mm – 500mm H

Payload

5Kg – 500Kg

Speed

• Customizable

Layout type

• Customizable

Product to be handled

• Bags, cases, bottles, shrink packs, paint buckets, drums, totes, etc

Features

• Compact footprint effectively uses limited floor space
• Capable of depalletizing full layers
• Designed for easy expansion to accommodate future palletizing requirements
• Rugged heavy-duty design
• A sturdy frame constructed from heavy-duty structural tubes
• A robust rack and pinion system ensures accurate motion and positioning
• Clean design with capped and sealed tubes
• Smooth and quiet operation
• High-speed and high-capacity options enabled by gear motor drive
• Precision infeed with blade-stop positioning for positive drive
• Operates through electro-pneumatic mechanisms
• User-friendly HMI
• 4 servo axis of motion
