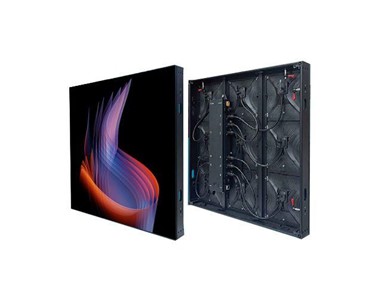

LED Digital Screen IP65 Front/IP54 Rear – OUTDOOR | OC Series

Supplier: SAS Supplier Group

LED Digital Screens are customisable products that can be made to cater to your specific project needs.

Digital Signage, Digital Displays,

Receive 1-3 days from order

Features:

Easy Installation & Easy Maintanence
Energy Efficient
High Definition Display
High Brightness
Wifi Wireless Control

Benefits:

• Standard Cabinet Size 960 x 960mm

• High Precise & Reliability LED Cabinet

• Lightweight Die-casting Aluminum Frame

• Anti-Moisture, Dust & High IP Rating

• Anywhere Fixed Installation

• Quick Lock and Easy Maintenance

• Support Energy-Saving Solution

• Ultra High brightness up to 10000nits

• Compatible with front and rear service

• Special designed high mask louvers makes vivid display performance even though under direct sunlight condition

• Compatible With Small Pitches P2.9/P3.9/P4.81

• High Brightness > 5500nits

• Superior Robust Aluminum Profile Cabinet

• Innovated Secure Locking Designed

• Overall Waterproof LED Module

• Front & Rear Quick Time Maintenance

• Customized Panel Size Designed For Anywhere Installation

Specifications OC Series:

Pixel Pitch
- 5mm
Pixel Configuration
- SMD 1921
Module Size (W x H)
- 320 x 320mm
Module Resolution
- 64x64 pixel
Panel Dimension
- 960 x 960 x 135mm
Panl Resolution (H x V)
- 192 x 192
Pixel Density
- 40000
Drive Mode
- 1/8
Brightness (nits/m3)
- 5500-8000nits
Colour Processing (Bit)
- 14-18 bit
Colour Temperature
- 6500-9300K
Grey Level
- ≥16384
Refresh Rate
- ≥3840 Hz
Viewing Angle (H/V)
- High Mask 140/65 or Normal Mask 140/140
Input Voltage (V)
- ACTIOV-240V
Input Power Frequency (Hz)
- 50/60
Power Consumption (Avg) (W/m2)
- ≤274
Power Consumption (Max) (W/m2)
- ≤830
Frame Material
- Die Cast Aluminium
Weight per panel
- 31kg
Operational Temp/Humidity
- -20°-60°C, 10-90% RH -4-122°F, 10-90% RH
IP Rating
- Outdoor IP65 Front/IP54 Rear
Maintenance Method
- Front & Rear

To contact SAS Supplier Group about LED Digital Screen IP65 Front/IP54 Rear – OUTDOOR | OC Series use Get a quote.
