LED Digital Screen IP 40/31 – INDOOR | IT ...

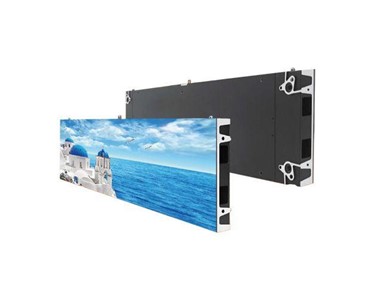

LED Digital Screen IP 40/31 – INDOOR | IT SERIES

Supplier: SAS Supplier Group

LED Digital Screens are customisable products that can be made to cater to your specific project needs.

Digital Signage, Digital Displays,

Receive 1-3 days from order

Features:

Easy Installation & Easy Maintanence
Energy Efficient
High Definition Display
High Brightness
Wifi Wireless Control

Specifications IT SERIES:

Pixel Pitch (mm)
- 1.953
LED Configuration
- SMD1515
Module Resolution (dots)
- 128 x 128
Module Size (WxH) (mm)
- 250 x 250
Pixel Density (dots/m3)
- 262144
Panel Dimension (WxHxD) (mm)
- 100 x 250 or 750 x 250 or 500 x 250
Panel Module Composition (WxH)
- 4 x 1 or 3 x 1 or 2 x 1
Panel Resolution (HxV) For 1000x250mm cabinet size
- 512 x 128
Max. Brightness (nits)
- ≥950
Net Weight per panel (kg)
- 6.5kg
Avg Power Consumption (W/m2)
- ≤550
Max Power Consumption (W/m3)
- ≤185
Viewing Angle (H/V)
- 160°/160°
Refresh rate
- ≥3840Hz
Colour Processing (bit)
- 12-18bit
Driving Mode (Scan)
- 1/32
Frame Material
- Aluminium
Operational Power Source
- 100-240v AC 50"60Hz
Operational Temp/Humidity
- -20°-50°C, 10-90% RH
IP Rating
- Indoor IP 40/31
Maintenance Method
- Front Service

Pixel Pitch (mm)
- 2.604
LED Configuration
- SMD1515
Module Resolution (dots)
- 96 x 96
Module Size (WxH) (mm)
- 250 x 250
Pixel Density (dots/m3)
- 147456
Panel Dimension (WxHxD) (mm)
- 100 x 250 or 750 x 250 or 500 x 250
Panel Module Composition (WxH)
- 4 x 1 or 3 x 1 or 2 x 1
Panel Resolution (HxV) For 1000x250mm cabinet size
- 384 x 96
Max. Brightness (nits)
- ≥950
Net Weight per panel (kg)
- 6.5kg
Avg Power Consumption (W/m2)
- ≤550
Max Power Consumption (W/m3)
- ≤185
Viewing Angle (H/V)
- 160°/160°
Refresh rate
- ≥3840Hz
Colour Processing (bit)
- 12-18bit
Driving Mode (Scan)
- 1/32
Frame Material
- Aluminium
Operational Power Source
- 100-240vACso60Hz
Operational Temp/Humidity
- -20°-50°C, 10-90% RH
IP Rating
- Indoor IP 40/31
Maintenance Method
- Front Service

To contact SAS Supplier Group about LED Digital Screen IP 40/31 – INDOOR | IT SERIES use Get a quote.

Features:

Easy Installation & Easy Maintanence
Energy Efficient
High Definition Display
High Brightness
Wifi Wireless Control

Specifications IT SERIES:

Pixel Pitch (mm)
- 1.953
LED Configuration
- SMD1515
Module Resolution (dots)
- 128 x 128
Module Size (WxH) (mm)
- 250 x 250
Pixel Density (dots/m3)
- 262144
Panel Dimension (WxHxD) (mm)
- 100 x 250 or 750 x 250 or 500 x 250
Panel Module Composition (WxH)
- 4 x 1 or 3 x 1 or 2 x 1
Panel Resolution (HxV) For 1000x250mm cabinet size
- 512 x 128
Max. Brightness (nits)
- ≥950
Net Weight per panel (kg)
- 6.5kg
Avg Power Consumption (W/m2)
- ≤550
Max Power Consumption (W/m3)
- ≤185
Viewing Angle (H/V)
- 160°/160°
Refresh rate
- ≥3840Hz
Colour Processing (bit)
- 12-18bit
Driving Mode (Scan)
- 1/32
Frame Material
- Aluminium
Operational Power Source
- 100-240v AC 50"60Hz
Operational Temp/Humidity
- -20°-50°C, 10-90% RH
IP Rating
- Indoor IP 40/31
Maintenance Method
- Front Service

Pixel Pitch (mm)
- 2.604
LED Configuration
- SMD1515
Module Resolution (dots)
- 96 x 96
Module Size (WxH) (mm)
- 250 x 250
Pixel Density (dots/m3)
- 147456
Panel Dimension (WxHxD) (mm)
- 100 x 250 or 750 x 250 or 500 x 250
Panel Module Composition (WxH)
- 4 x 1 or 3 x 1 or 2 x 1
Panel Resolution (HxV) For 1000x250mm cabinet size
- 384 x 96
Max. Brightness (nits)
- ≥950
Net Weight per panel (kg)
- 6.5kg
Avg Power Consumption (W/m2)
- ≤550
Max Power Consumption (W/m3)
- ≤185
Viewing Angle (H/V)
- 160°/160°
Refresh rate
- ≥3840Hz
Colour Processing (bit)
- 12-18bit
Driving Mode (Scan)
- 1/32
Frame Material
- Aluminium
Operational Power Source
- 100-240vACso60Hz
Operational Temp/Humidity
- -20°-50°C, 10-90% RH
IP Rating
- Indoor IP 40/31
Maintenance Method
- Front Service

Read less...

To contact SAS Supplier Group about LED Digital Screen IP 40/31 – INDOOR | IT SERIES use Get a quote.
