LED Digital Screen IP 34 – INDOOR | IEP ...

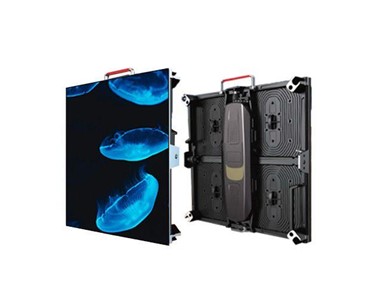

LED Digital Screen IP 34 – INDOOR | IEP SERIES

Supplier: SAS Supplier Group

LED Digital Screens are customisable products that can be made to cater to your specific project needs.

Digital Signage, Digital Displays,

Receive 1-3 days from order

Features:

Easy Installation & Easy Maintanence
Energy Efficient
High Definition Display
High Brightness
Wifi Wireless Control

Specifications IEP SERIES:

Model No.
- IEP191
Pixel Pitch (mm)
- 1.953
LED Configuration
- SMD1515
Module Resolution (dots)
- 128 x 128
Module Size (WxH) (mm)
- 250 x 250
Pixel Density (dots/m3)
- 262144
Panel Dimension (WxHxD) (mm)
- 500 x 500 x 66
Panel Resolution (HxV)
- 256 x 256
Max. Brightness (nits)
- 1000nits-2500nits or higher
Net Weight per panel (kg)
- 5.3kg
Avg Power Consumption (W/m2)
- 190
Max Power Consumption (W/m3)
- 580
Viewing Angle (H/V)
- 160°/160°
Refresh rate
- ≥3840Hz
Colour Processing (bit)
- 13-18bit
Driving Mode (Scan)
- 1/32
Frame Material
- Die Casting Aluminium
Operational Temp/Humidity
- -20°-50°C, 10-90% RH -4°-122° F, 10-90% RH
- 4-122°F, 10-90% RH
IP Rating
- Indoor IP 34
Maintenance Method
- Front & Rear

Model No.
- IEP261
Pixel Pitch (mm)
- 2.604
LED Configuration
- SMD1515
Module Resolution (dots)
- 96 x 96
Module Size (WxH) (mm)
- 250 x 250
Pixel Density (dots/m3)
- 147456
Panel Dimension (WxHxD) (mm)
- 500 x 500 x 66
Panel Resolution (HxV)
- 192 x 192
Max. Brightness (nits)
- 1000nits-2500nits or higher
Net Weight per panel (kg)
- 5.3kg
Avg Power Consumption (W/m2)
- 167
Max Power Consumption (W/m3)
- 500
Viewing Angle (H/V)
- 160°/160°
Refresh rate
- ≥3840Hz
Colour Processing (bit)
- 13-18bit
Driving Mode (Scan)
- 1/32
Frame Material
- Die Casting Aluminium
Operational Temp/Humidity
- -20°-50°C, 10-90% RH -4°-122° F, 10-90% RH
- 4-122°F, 10-90% RH
IP Rating
- Indoor IP 34
Maintenance Method
- Front & Rear

To contact SAS Supplier Group about LED Digital Screen IP 34 – INDOOR | IEP SERIES use Get a quote.

Features:

Easy Installation & Easy Maintanence
Energy Efficient
High Definition Display
High Brightness
Wifi Wireless Control

Specifications IEP SERIES:

Model No.
- IEP191
Pixel Pitch (mm)
- 1.953
LED Configuration
- SMD1515
Module Resolution (dots)
- 128 x 128
Module Size (WxH) (mm)
- 250 x 250
Pixel Density (dots/m3)
- 262144
Panel Dimension (WxHxD) (mm)
- 500 x 500 x 66
Panel Resolution (HxV)
- 256 x 256
Max. Brightness (nits)
- 1000nits-2500nits or higher
Net Weight per panel (kg)
- 5.3kg
Avg Power Consumption (W/m2)
- 190
Max Power Consumption (W/m3)
- 580
Viewing Angle (H/V)
- 160°/160°
Refresh rate
- ≥3840Hz
Colour Processing (bit)
- 13-18bit
Driving Mode (Scan)
- 1/32
Frame Material
- Die Casting Aluminium
Operational Temp/Humidity
- -20°-50°C, 10-90% RH -4°-122° F, 10-90% RH
- 4-122°F, 10-90% RH
IP Rating
- Indoor IP 34
Maintenance Method
- Front & Rear

Model No.
- IEP261
Pixel Pitch (mm)
- 2.604
LED Configuration
- SMD1515
Module Resolution (dots)
- 96 x 96
Module Size (WxH) (mm)
- 250 x 250
Pixel Density (dots/m3)
- 147456
Panel Dimension (WxHxD) (mm)
- 500 x 500 x 66
Panel Resolution (HxV)
- 192 x 192
Max. Brightness (nits)
- 1000nits-2500nits or higher
Net Weight per panel (kg)
- 5.3kg
Avg Power Consumption (W/m2)
- 167
Max Power Consumption (W/m3)
- 500
Viewing Angle (H/V)
- 160°/160°
Refresh rate
- ≥3840Hz
Colour Processing (bit)
- 13-18bit
Driving Mode (Scan)
- 1/32
Frame Material
- Die Casting Aluminium
Operational Temp/Humidity
- -20°-50°C, 10-90% RH -4°-122° F, 10-90% RH
- 4-122°F, 10-90% RH
IP Rating
- Indoor IP 34
Maintenance Method
- Front & Rear

Read less...

To contact SAS Supplier Group about LED Digital Screen IP 34 – INDOOR | IEP SERIES use Get a quote.
