HIKMICRO - High Resolution Thermal Imaging Camera - 640 x 480 px | M60 Get latest price

Read more...

To contact Testrix about HIKMICRO High Resolution Thermal Imaging Camera - 640 x 480 px | M60 use Get a quote.

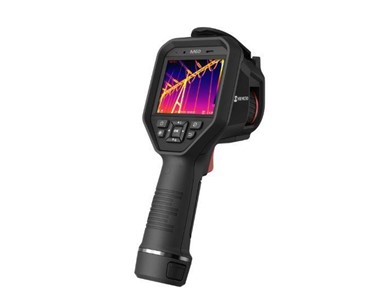

The HIKMICRO M60 Thermal Imaging Camera is a high-resolution infrared inspection tool designed for engineers, electricians, maintenance teams, and building inspectors who require superior thermal detail and diagnostic accuracy. Equipped with a 640 × 480 IR detector, 10.1 mm lens, and a wide temperature range, the M60 delivers crystal-clear thermal images and precise measurements in demanding environments.

Whether you are performing predictive maintenance, identifying electrical faults, conducting building inspections, or monitoring mechanical systems, the M60 combines rugged design, intuitive operation, and professional performance.

Key Features

• Ultra-high thermal resolution: 640 × 480 pixels for fine detail imaging
• Thermal sensitivity (NETD): < 35 mK @ 25°C, F#=1.0
• Wide temperature range: -20°C to 650°C
• 3.5” LCD touchscreen with intuitive navigation
• Multiple imaging modes: Thermal, Fusion, PIP, Blending, Optical
• Precise manual focus for close-up and long-range accuracy
• Advanced analysis tools: Spot, line, area, isotherm, emissivity adjustment
• Connectivity: Wi-Fi, USB-C, HDMI for fast transfer and collaboration
• Long battery life: Up to 4 hours, two Li-ion batteries included
• Rugged IP54-rated, drop-tested to 2 m, ergonomic lightweight design (< 680 g)

Applications

• Electrical maintenance: Loose connections, overloaded circuits, hot spots
• HVAC & building inspections: Insulation issues, leaks, moisture detection
• Mechanical diagnostics: Bearings, motors, abnormal friction and overheating
• Energy audits: Identify inefficiencies, insulation voids, energy loss
• Predictive maintenance: Minimize downtime with early fault detection

Technical Specifications

IR Resolution: 640 × 480 pixels

Thermal Sensitivity (NETD): < 35 mK (@25°C, F#=1.0)

Temperature Range: -20°C to 650°C

Accuracy: Max(±2°C, ±2%)

Display: 3.5” LCD touchscreen

Focus: Manual

Lens: 10.1 mm (F1.0)

Imaging Modes: Thermal, Visual, Fusion, PIP, Blending

Storage: Removable 64 GB Micro SD card

Connectivity: Wi-Fi, USB-C, HDMI

Battery Life: Up to 4 hours, 2 batteries included

Protection Rating: IP54, 2 m drop-tested

Weight: < 680 g

Package Includes

• HIKMICRO M60 Thermal Imaging Camera
• 2 × rechargeable Li-ion batteries
• Battery charger
• USB-C cable
• Calibration certificate
• Protective carry case
• User manual

Why Choose the HIKMICRO M60?

The HIKMICRO M60 offers exceptional resolution, wide temperature range, and advanced analysis tools in a rugged, professional design. It provides premium-level performance at a cost-effective price, making it a trusted solution for thermal inspections across multiple industries.
