HIKMICRO - Professional Thermal Imaging Camera - 384 x 288 px | M31 Get latest price

Read more...

To contact Testrix about HIKMICRO Professional Thermal Imaging Camera - 384 x 288 px | M31 use Get a quote.

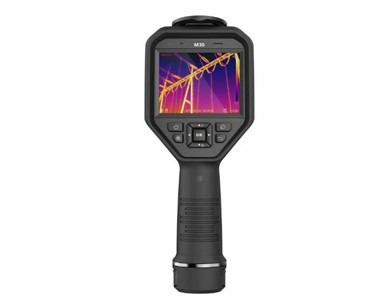

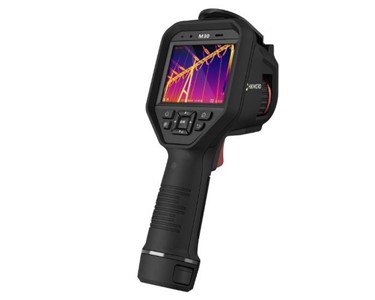

The HIKMICRO M31 Infrared Thermal Imaging Camera is a professional-grade diagnostic tool designed for electrical maintenance, mechanical inspections, HVAC servicing, and building diagnostics. Combining high-resolution infrared imaging, smart analysis features, and rugged ergonomics, the M31 delivers accurate temperature measurement and real-time anomaly detection across industrial and commercial applications.

Key Features

• Thermal resolution: 384 × 288 (110,592 pixels)
• High thermal sensitivity: < 35 mK @ 25°C
• Temperature measurement range: -20°C to +650°C
• Accuracy: ±2°C or ±2%
• 3.5” LCD touchscreen with integrated 8 MP visible-light camera
• Image modes: Thermal, Visual, Picture-in-Picture, Fusion, Blending
• Laser pointer and LED work light for precise targeting
• Onboard analysis with voice/text annotations and report generation
• Connectivity: Wi-Fi and USB-C for fast transfer and remote sharing
• Hot-swappable dual batteries with up to 8 hours runtime
• Rugged design: IP54-rated, drop-tested to 2 meters

Applications

• Electrical maintenance: Identify overheating components, loose connections, overloaded circuits
• Mechanical inspections: Monitor bearings, shafts, and moving parts for thermal anomalies
• HVAC & refrigeration: Detect leaks, coil blockages, or inefficiencies
• Building diagnostics: Pinpoint insulation gaps, air leaks, moisture ingress, mold risks
• Solar panel testing: Detect faulty or inefficient photovoltaic cells
• Energy audits: Assess heat loss and optimize thermal efficiency

Benefits

• High-resolution thermal performance at an affordable price point
• Compact, professional design with intuitive touchscreen operation
• Smart onboard tools for faster inspections and reporting
• Trusted reliability with rugged build and hot-swappable batteries

Technical Specifications

Thermal Resolution: 384 × 288 (110,592 pixels)

NETD: < 35 mK @ 25°C

Temperature Range: -20°C to +650°C

Accuracy: ±2°C or ±2%

Frame Rate: 30 Hz

Display: 3.5” LCD touchscreen

Visible Camera: 8 MP

Storage: Removable 64 GB micro SD card

Image Modes: Thermal, Visual, PIP, Fusion, Blending

Connectivity: Wi-Fi, USB-C

Battery Life: 4 hours per battery, hot-swappable

Drop Resistance: 2 m

Protection Rating: IP54

Weight: ~720 g

Package Includes

HIKMICRO M31 Thermal Imaging Camera

2 × rechargeable Li-ion batteries

Charging dock and USB-C cable

Hard carry case

Wrist strap

Quick start guide

Calibration certificate

HIKMICRO Viewer software (downloadable)

Why Choose the HIKMICRO M31?

The HIKMICRO M31 combines affordability with professional-grade features. With its high-resolution imaging, robust build, and wireless reporting, it is trusted by electricians, HVAC specialists, building inspectors, and facility managers for precise, reliable, and efficient thermal diagnostics.
