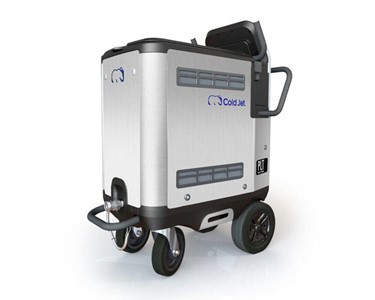

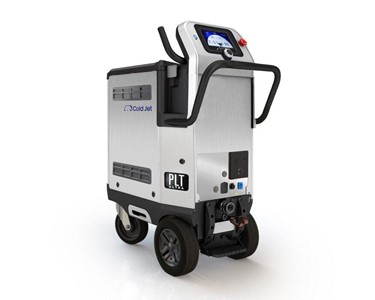

Dry Ice Blaster 2.7 kg/min | Cold Jet PLT Ultra Get latest price

Read more...

To contact Cold Jet Australia about Dry Ice Blaster 2.7 kg/min | Cold Jet PLT Ultra use Get a quote.

This machine can blast at up to 250 PSI (17.2 bar) with a feed rate of up to 6 lb/min (2.7 kg/min), providing more than enough power to remove the most stubborn contaminants. Configuring this machine with any combination of our proprietary nozzles can optimize your blast setup for the highest performance on the market.

The PLT ULTRA utilizes Aero advancements that enable the machines to be the most efficient dry ice blasters available. With a ‘straight through’ air system and redesigned SureFlow™ feeding system, air pressure loss and dry ice sublimation are minimized within the machine. This allows the user to maximize air supply yield and reduce dry ice waste.

With a 7” LCD screen and digital controls, the PLT ULTRA provides an intuitive display that allows the user to easily view and adjust blasting parameters and machine settings.

This powerful dry ice blaster also features programmable application recipes, which allows users to set and save blasting parameters, such as blast pressure and feed rate.

The PLT ULTRA is IoT enabled via Cold Jet’s Industry 4.0 solution, Cold Jet CONNECT®. The system provides remote monitoring and diagnostics, training videos, machine documentation, and self-guided troubleshooting at your fingertips. Should more assistance be required, operators can quickly and easily connect with Cold Jet service technicians via chat, service tickets or voice and video call.

The Aero2 ULTRA Series Advantage

SureFlow Feeder System

Our patented SureFlow Feeder System incorporates thumpers, ramrods, vibrators, and an insulated hopper, providing optimal hopper agitation for a consistent flow of dry ice.

New Motors, Gearboxes, and Cabling

The new motor array is built with ultra-cold temperature motors that keep working even after long blasting cycles. Proprietary control firmware and motor drivers get the most efficient and optimal power from these motors.

Intuitive Display

Easily view and control blasting parameters and machine settings on 7" LCD color screen.

Programmable Application Recipes

Set and save application recipes (blast pressure and feed rate). Ensure the most efficient use of consumables and prevent user error.

Designed for High Performance Applications

Blast with up to 250 PSI (17.2 bar) of pressure with consistent and pulse-free blast stream.

Complete Control

No other machine offers this level of precision and versatility.

Ergonomic

Optimized design and combination of materials leads to weight and size reduction. Blast hoses redesigned blast hoses for flexibility and durability.

IoT Capability

Remote monitoring and diagnostics with industry-first Cold Jet CONNECT.

Aero2 PLT ULTRA Features

• 7” LCD display screen with digital controls
• Streamlined “straight-through” air system
• Programmable Application Recipes
• Advanced Aerodynamic Low Load Airlock Feeder
• Patented High-Efficiency Flow Initiation Regulator
• Patented Advanced Direct Drive Feeding System
• Patent-pending defrost cycle
• New state-of-the-art motors, gearboxes, and cabling
• Coated tool grade aluminum alloy, stainless steel and polymer frame
• Designed for mobility and maneuverability
• IoT Capability – Cold Jet CONNECT
• Integration and automation ready

Aero2 PLT ULTRA Specifications

Dimensions

38.5 in (98 cm) x 19 in (48 cm) x 45 in (114 cm)

Weight

243 lb (110.2 kg)

Hopper Capacity

60 lb (27 kg)

Display

7” LCD Screen

Power Requirements

110/230V AC (50/60 Hz); AMPS: 4.5

Variable Feed Rate

0 - 6 lb/min (0 - 2.7 kg/min)

Dry Ice Particle Size

Input: 3mm ; Output: 3mm

Blast Pressure Range

35 - 250 psi (2.4 - 17.2 bar)

Supply Pressure Range

40 - 250 psi (2.8 - 17.2 bar)

Nozzle Air Consumption Range

50 - 165 cfm at 80 psi (1.4 - 4.7 m3/min at 5.5 bar)

Air Flow Path

1 in (25.4 mm) Straight Through Tubing

SureFlow

Thumper, Ramrods, Electric Vibrator, “Always-On” Hopper Agitation, Isolated Hopper
