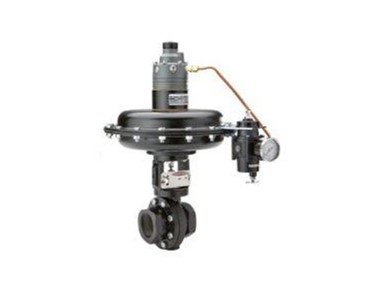

Sliding Gate Control Valve | Mark 701/702 Series Get latest price

The Mark 701/702 high flow sliding gate control valve provides higher Cvs (Kvs) without going to a larger valve, straight through flow and ease of maintenance. A side or top mounted positioner is available to overcome the normal hysteresis for a control valve and actuator and to ensure that the valve stem position is always directly proportional to the control valve command signal.

Features & Benefits

• High flow and super high flow
• Shorter stroke than a globe or plug-style valve – faster response, longer packing and seat life, stem packing is four times deeper than stem travel for greater protection against leakage, smaller & lighter weight than globe-style valves
• Straight thru flow – less turbulence, erosion and noise, fewer spare parts, self-cleaning seats, no gaskets or o-rings
• Ease of maintenance – interchangeable seats and Cv’s

Specifications

• Sizes: 1/2″ – 2″ (DN15 -DN50)
• Body Material: Ductile Iron, Carbon Steel, Stainless Steel, Bronze
• Seat Material: Jorcote on SST standard
• Cv (Kv): up to 70 (up to 60,3)
• Action: Direct (ATC) or Reverse (ATO)
• Ranges: 3-15 psi, 6-30 psi (0,2-1,0; 0,4-2,1 bar) or split ranges
