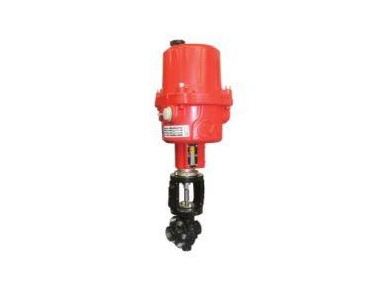

Control Valve | Mark 37 Series

Supplier: Cebeco

The Mark 37 is a motor-operated control valve that combines a state-of-the-art electronic linear actuator with the exceptional performance of Jordan’s sliding gate valve seat design.

Receive 1-3 days from order

The result is a superior degree of accuracy that makes it ideal for use as the final control element in distributed process control systems. The Mark 371/372 is the high flow version and the Mark 377 is he equal percentage version.

Features & Benefits

A stroke shorter than those found in globe or plug-style valves resulting in much faster operation than other electric control valves
Long packing and stem life, with stem packing four times deeper than stem travel
Sliding gate seats provide straight-through flow for reduced turbulence and quiet operation
Short stroke for faster response and accurate regulation
Easily interchangeable Cvs
Tight shutoff

Specifications

Sizes: 1/4″ – 6″ (DN8 – DN150)
Body Material: Carbon Steel, Stainless Steel, Ductile Iron, Cast Iron, Bronze
End Connection: Threaded, Flanged, Socket Weld, Butt-Weld
Cv (Kv)” up to 395 (up to 340)
Seat Material: Jorcote
Command Signals: Current or voltage command, on/off

To contact Cebeco about Control Valve | Mark 37 Series use Get a quote.

Features & Benefits

A stroke shorter than those found in globe or plug-style valves resulting in much faster operation than other electric control valves
Long packing and stem life, with stem packing four times deeper than stem travel
Sliding gate seats provide straight-through flow for reduced turbulence and quiet operation
Short stroke for faster response and accurate regulation
Easily interchangeable Cvs
Tight shutoff

Specifications

Sizes: 1/4″ – 6″ (DN8 – DN150)
Body Material: Carbon Steel, Stainless Steel, Ductile Iron, Cast Iron, Bronze
End Connection: Threaded, Flanged, Socket Weld, Butt-Weld
Cv (Kv)” up to 395 (up to 340)
Seat Material: Jorcote
Command Signals: Current or voltage command, on/off
