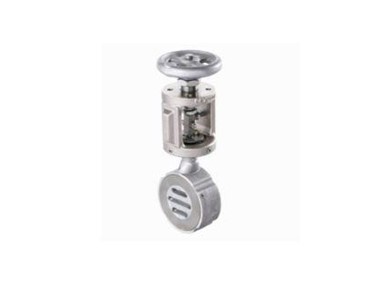

Control Valve | Mark 75HW Series Get latest price

The Mark 75HW is a manually operated, sliding gate control valve. The hand wheel operator allows the user to manually position the valve for optimum flow and lock in place. The Mark 75HW features a “T” slot design connection to the disc. This connections allows for quick and easy reversing of functions. The valve can go from reverse acting to direct acting (or vice versa).

Features & Benefits

• Easy installation between flanges with wafer body
• High flow rates
• Self cleaning, self-lapping seats
• Reduced noise compared to conventional globe/cage valves
• More resistant to cavitation / flashing with straight through wafer design

Specifications

• Sizes: 1″ – 2″ (DN25 – DN50)
• Body Material: 316 Stainless Steel, Carbon Steel
• Seat Materials: Jorcote/316SS standard
• Cv (Kv): up to 72 (up to 62)
• Turndown Ratio Capability: 100:1
• Max Inlet Pressure: 150 psi (10 bar)

To contact Cebeco about Control Valve | Mark 75HW Series use Get a quote.
