SANY - SY75C - Excavator 7.5T Get latest price

Read more...

To contact WATM Equipment about SANY SY75C - Excavator 7.5T use Get a quote.

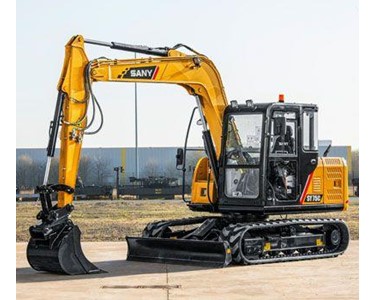

The SANY SY75C medium excavator is designed with high engine output power, fast speed and high fuel efficiency, suitable for demanding jobsites. Powerful and with a large excavation depth, this machine completes all tasks efficiently and with a reliable performance. The excavators sophisticated structure allows it to tackle very high loads with exemplary stability. Moreover, the cabins state of the art design is reminiscent of a comfortable car’s interior. Not only visually appealing to drivers- the cabs comfort and ergonomics are precisely tailored to the requirements for safe and concentrated work.

SANY four-cylinder engine and four stroke direct-injection provides a stronger power for the excavator.

 Auto deceleration reduces fuel consumption by 5-10%. The engine speed drops automatically to idle level and maintains the idling state when the operation stops for 3.5 seconds.

A quick return line is added to the arm oil cylinder circuit, considerably improving the operating efficiency at low energy consumption. Main pump delivery increases from 149 litres to 168 litres. Faster speed is achieved in separate operation

• Displacement: 2.2 L
• Engine model: ISUZU Tier 4
• Rated power: 43 kW @ 2000 rpm

Operation Range

• Height at min. swing radius: 5500 mm
• Max. depth of blade down: 330 mm
• Max. digging depth: 4450 mm
• Max. digging height: 7390 mm
• Max. digging reach: 6600 mm
• Max. dumping height: 5490 mm
• Max. ground clearance of blade up: 380 mm
• Max. vertical digging depth: 3840 mm
• Min. swing radius: 1940 mm
• Operating weight: 7280 kg

Dimensions

• Blade height: 405 mm
• Tail swing radius: 1800 mm
• Track length: 2820 mm
• Transport height: 2760 mm
• Transport length: 6095 mm
• Transport width: 2220 mm
• Upper width: 2040 mm

Undercarriage / Working Device

• Arm length: 2050 mm
• Boom length: 3720 mm
• Bucket capacity: 0.28 m³
• Track gauge: 1750 mm
• Track width: 450 mm

Performance

• Arm digging force: 30 kN
• Bucket digging force: 51 kN
• Engine oil: 10 L
• Fuel tank capacity: 150 L
• Gradeability: 35°
• Ground pressure: 33 kPa
• Hydraulic tank capacity: 120 L
• Swing speed: 10 rpm
• Travel speed: 2.4 / 4.4 km/h

Hydraulic System

• Hydraulic motors – swing: 10.5 rpm
