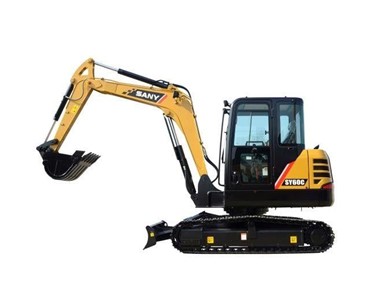

SANY - SY60C - Excavator 6T Get latest price

Read more...

To contact WATM Equipment about SANY SY60C - Excavator 6T use Get a quote.

The SLSS hydraulic system developed by an international team ensures precise operation and energy conservation.

Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life.

Easily accessible service points and a detachable radiator screen are among the features that make scheduled maintenance more convenient.

• Displacement: 2.615 L
• Engine model: Yanmar Tier 4 (4TNV98C)
• Rated power: 42.4 kW @ 2000 rpm

OPERATION RANGE

• Height at min. swing radius: 4495 mm
• Max. depth of blade down: 380 mm
• Max. digging depth: 3950 mm
• Max. digging height: 5790 mm
• Max. digging reach: 6320 mm
• Max. dumping height: 4060 mm
• Max. excavating distance: 6320 mm
• Max. ground clearance of blade up: 330 mm
• Max. vertical digging depth: 3180 mm
• Min. swing radius: 2555 mm
• Operating weight: 6000 kg

DIMENSIONS

• Blade height: 340 mm
• Min. ground clearance: 330 mm
• Tail swing radius: 1640 mm
• Track length: 2545 mm
• Transport height: 2645 mm (8’8”)
• Transport length: 6015 mm (19’9”)
• Transport width: 2005 mm (6’7”)
• Upper width: 1860 mm

UNDERCARRIAGE/WORKING DEVICE

• Arm length: 1700 mm
• Boom length: 3000 mm
• Roller gauge: 1600 mm
• Track gauge: 1600 mm
• Track width: 400 mm

PERFORMANCE

• Arm digging force: 33 kN
• Bucket digging force: 45 kN
• Cooling system: 5.6 L (1.5 gal)
• Engine oil: 9.6 L (2.5 gal)
• Fuel tank capacity: 130 L (34.3 gal)
• Gradeability: 35°
• Ground pressure: 37.5 kPa
• Hydraulic tank capacity: 85 L
• Swing speed: 9.6 rpm
• Travel speed: 2.4 / 3.7 km/h

HYDRAULIC SYSTEM

• Hydraulic motors – swing: 9.6 rpm
• Main pump – maximum flow: 142.7 L/min
