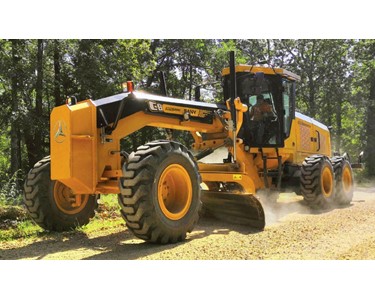

SANY - SMG260C-10 - Motor Grader 14ft Get latest price

Read more...

To contact WATM Equipment about SANY SMG260C-10 - Motor Grader 14ft use Get a quote.

This motor grader is built with a precision hydraulic system, advanced operator comfort, and easy-access maintenance points. It delivers the reliability WA worksites demand. Whether you’re managing roads, large-scale construction or land development, the SMG260C-10 is built to handle demanding conditions. It’s a dependable choice for operators looking for a reliable motor grader and a proven performer among road graders in WA.

Features:

PRECISION HYDRAULIC SYSTEM

Load sensing hydraulics provide responsive multi-function control for exceptional grading. Automatic pump flow adjustment improves fuel economy. Optional intelligent fan system adjusts cooling speed to operating temperature.

POWERFUL POWERTRAIN SYSTEM

Direct drive power shift transmission ensures smooth, responsive shifting under load.

COMFORTABLE OPERATOR ENVIRONMENT

360-degree visibility, silent ride cab design and 7” in-cab touchscreen improve usability and fatigue reduction.

RELIABLE STRUCTURE

Precision circle bearing system minimises wear and maintenance downtime.

CONVENIENT MAINTENANCE

Easily accessible handrails, service points, and a centralised filter layout reduce time spent on daily checks and upkeep.

WA’s trusted name in SANY Motor Graders

As the authorised WA supplier of SANY equipment, WATM Equipment backs every motor grader with reliable support, servicing, and expert guidance – helping you get the most from your machine, from road prep to final grade.

Specifications:

DIMENSIONS

Size

11236mm x 2731mm x 3508mm

Weight

15,803 kg

PERFORMANCE

Engine model

Cummins QSC 8.3 (T3)

Rated power

194KW/2200RPM

Fuel tank capacity

400L

Travel speed - forward

49.6km/h

Travel Speed - reverse

39.1km/h

Traction

103.5kN

Operator noise

66.4dB(A) – 2200rpm

Transmission

SANY Direct Drive Powershift

Operation

Dual joysticks and steering wheel

Axle

Meritor / DANA

Hydraulics

Danfoss

Tire

Triangle

Displacement

8.3L

VHP (net)

194kW

Bore

114mm

Stroke

135mm

Speed @ rated power

2200rpm

Number of cylinders

6

Derating altitude

4500m

High ambient capability

50 ?

Maximum fan speed

1850rpm

Maximum torque net

1135Nm

Torque rise

35%

Fuel consumption

25.7L/h

POWER TRAIN

Gears

8 forward / 6 reverse

Transmission

Direct drive, Power shift

Brakes – service

Hydraulically actuated, multiple oil-disc

Brakes – service, surface area

21000cm²

Brakes – service distance

10.7m (32km/h)

Brakes – parking

Hydraulically actuated, multiple oil-disc

Brakes – secondary

Dual circuit

Turning radius, outside front tires

7.55m

Steering range – left/right

41.0 Degrees

Articulation angle – left/right

24.5 Degrees

HYDRAULIC SYSTEM

Circuit type

Load sensing, proportional priority pressure compensating system

Implements pump type

Variable piston

Maximum implements system pressure

25 Mpa

Implements system standby pressure

3.2 Mpa

Implements pump output

231L/min

Fan pump type

Variable piston

Maximum fan system pressure

21 Mpa

Fan pump output

99L/min

Fan motor / maximum rotate speed

Gear motor / 1850 rpm

Hydraulic tank capacity

140L

BLADE

Size

4.27m

Blade width

Standard 3700mm

Moldboard – height

610mm

Moldboard – thickness

22mm

Arc radius

413mm

Throat clearance

120mm

Cutting edge – width

203mm

Cutting edge – thickness

19mm

End bit – width

152mm

End bit – thickness

19mm

Moldboard sideshift – right / left

662mm / 630mm

Maximum blade position angle

90°

Blade tip range

43°

Maximum shoulder reach outside of tires – right / left

2070mm / 2118mm

Maximum lift above ground

488mm

Maximum depth of cut

1236mm

STRUCTURES

Front axle - total oscillation

32°

Circle - diameter

1520mm

Circle - blade beam thickness

40mm

Drawbar - height

140mm

Drawbar - width

80mm

Front axle - height to center

645mm

Front axle - wheel lean, left/right

26°

Front-top/bottom plate - width

300mm

Front-top/bottom plate - thickness

25mm

Front-side plates - width

303mm

Front-side plates - thickness

25mm

Tandem height

670mm

Tandem width

215mm

Tandem sidewall thickness – inner / outer

25mm / 25mm

Tandem drive chain pitch

50.8mm

Tandem wheel axle spacing

1594mm

Tandem oscillation - front up / down

15° / 25°
