Prorotor Rakes 540RPM for sale from New Holland Agriculture

Prorotor Rakes 540RPM

ProRotor™ single rotor rakes enable side delivery of the crop and feature a swath curtain, which can be adjusted to match the width of the swath being worked.

Receive 1-3 days from order

The range also enables different wheel options:
• Four wheel bogie axle delivers smooth operation in undulating terrain.
• Three D bogie axle enables the front wheel to follow the rake whilst turning to better follow the arc of the turn.

Features

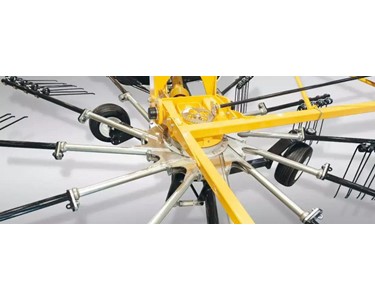

Maintenance free rotor arms

The rotor arms on the ProRotor 420, 450, L 630, L 640 Auto-Steer, L 640, C 760 and C 820 models feature maintenance-free ball bearings at either end. Manufactured from solid steel, they have been engineered by design to withstand intensive usage.

Efficient tine arm storage

For easy transport and storage, the tine arms can be easily dismounted and stored in a dedicated tine arm storage area. This enables better visibility during transport, and also reduces the overall width of the rake, ideal when travelling down narrow country lanes or when being stored away during winter.

Tangential tine arm technology

The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.

Available Model:

New Holland ProRotor™ 290
New Holland ProRotor™ 320
New Holland ProRotor™ 360
New Holland ProRotor™ 420
New Holland ProRotor™ 450

Specifications:

New Holland ProRotor™ 290	New Holland ProRotor™ 320	New Holland ProRotor™ 360	New Holland ProRotor™ 420	New Holland ProRotor™ 450
Specifications
Type of rake	Side delivery	Side delivery	Side delivery	Side delivery	Side delivery
Mounting type	3-point headstock	3-point headstock	3-point headstock	3-point headstock	3-point headstock
Working width (m)	2.9	3.15	3.6	4.15	4.45
Number of swaths	1	1	1	1	1
Rotor diameter (m)	2.4	2.65	2.95	3.2	3.5
Tine arms per rotor / double tines per tine arm	8/3	9/3	10/4	12/4	12/4
MIN-trans detachable tine arms	Standard	Standard	Standard	Standard	Standard
Tangential tine arm control	Standard	Standard	Standard	Standard	Standard
Covered cam track	–	–	–	Standard	Standard
3rd wheel at 3-pt headstock optional	Optional	Optional	Optional	Optional	Optional
Advanced wide-track axle	Standard	Standard	Standard	Standard	Standard
Drive chassis	–	–	–	–	–
4-wheel bogie axle	–	Standard	Standard	Standard	Standard
Central height adjustment	Standard	Standard	Standard	Standard	Standard
Transport width (m)	1.6	1.6	1.6	1.9	2.18
Shock absorber	–	–	–	Standard	Standard
Rotors tyres	16x6.5-8	16x6.5-8	16x6.5-8	18.5/8.5-8	18.5/8.5-8
Minimum PTO Power [kW/hp(CV)]	15/20	15/20	18/25	26/35	33/ 45
PTO speed (rpm)	540	540	540	540	540
Hydraulic remote required	–	–	–	–	–
Weight (kg)	275	340	405	570	650

To contact New Holland Agriculture about Prorotor Rakes 540RPM use Get a quote.

Features

Maintenance free rotor arms

Efficient tine arm storage

Tangential tine arm technology

The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.

Available Model:

New Holland ProRotor™ 290
New Holland ProRotor™ 320
New Holland ProRotor™ 360
New Holland ProRotor™ 420
New Holland ProRotor™ 450

Specifications:

New Holland ProRotor™ 290	New Holland ProRotor™ 320	New Holland ProRotor™ 360	New Holland ProRotor™ 420	New Holland ProRotor™ 450
Specifications
Type of rake	Side delivery	Side delivery	Side delivery	Side delivery	Side delivery
Mounting type	3-point headstock	3-point headstock	3-point headstock	3-point headstock	3-point headstock
Working width (m)	2.9	3.15	3.6	4.15	4.45
Number of swaths	1	1	1	1	1
Rotor diameter (m)	2.4	2.65	2.95	3.2	3.5
Tine arms per rotor / double tines per tine arm	8/3	9/3	10/4	12/4	12/4
MIN-trans detachable tine arms	Standard	Standard	Standard	Standard	Standard
Tangential tine arm control	Standard	Standard	Standard	Standard	Standard
Covered cam track	–	–	–	Standard	Standard
3rd wheel at 3-pt headstock optional	Optional	Optional	Optional	Optional	Optional
Advanced wide-track axle	Standard	Standard	Standard	Standard	Standard
Drive chassis	–	–	–	–	–
4-wheel bogie axle	–	Standard	Standard	Standard	Standard
Central height adjustment	Standard	Standard	Standard	Standard	Standard
Transport width (m)	1.6	1.6	1.6	1.9	2.18
Shock absorber	–	–	–	Standard	Standard
Rotors tyres	16x6.5-8	16x6.5-8	16x6.5-8	18.5/8.5-8	18.5/8.5-8
Minimum PTO Power [kW/hp(CV)]	15/20	15/20	18/25	26/35	33/ 45
PTO speed (rpm)	540	540	540	540	540
Hydraulic remote required	–	–	–	–	–
Weight (kg)	275	340	405	570	650

Read less...

To contact New Holland Agriculture about Prorotor Rakes 540RPM use Get a quote.
