Prorotor C Rakes 540RPM

Supplier: New Holland Agriculture

Prorotor C Rakes 540RPM

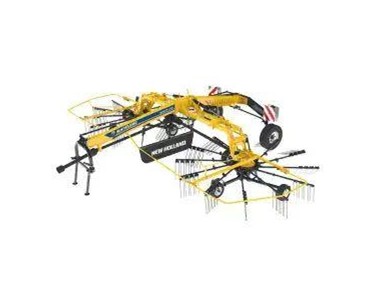

ProRotor™ C double rotor rakes ensure central crop delivery.

Receive 1-3 days from order

Attached to the linkage arms, it can be hydraulically folded for transport, and when in transport configuration, it is less than four metres in height, ideal when transporting in areas with overhanging foliage. Benefitting from high ground clearance, this range is ideal when working with large swaths of dense crop. Available on the 760 and 820 the Cardanic rotor suspension technology means that the rotors can move both laterally and fore-aft freely for efficient operation.

Explore Features

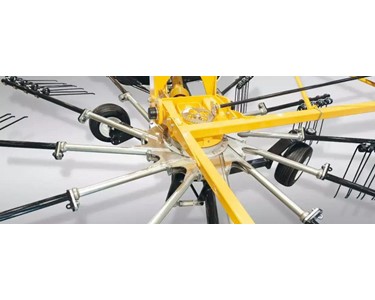

Maintenance free rotor arms

The rotor arms on the ProRotor 420, 450, L 630, L 640 Auto-Steer, L 640, C 760 and C 820 models feature maintenance-free ball bearings at either end. Manufactured from solid steel, they have been engineered by design to withstand intensive usage.

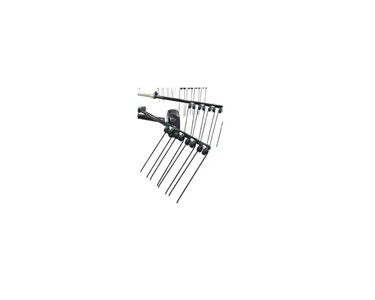

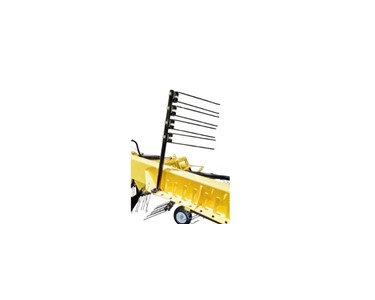

Efficient tine arm storage

For easy transport and storage, the tine arms can be easily dismounted and stored in a dedicated tine arm storage area. This enables better visibility during transport, and also reduces the overall width of the rake, ideal when travelling down narrow country lanes or when being stored away during winter.

Tangential tine arm technology

The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.

Available Models:

New Holland ProRotor™ C 660
New Holland ProRotor™ C 660M
New Holland ProRotor™ C 760
New Holland ProRotor™ C 820

Specifications:

New Holland ProRotor™ C 660	New Holland ProRotor™ C 660M	New Holland ProRotor™ C 760	New Holland ProRotor™ C 820
Specifications
Type of rake	Central delivery	Central delivery	Central delivery	Central delivery
Mounting type	2- point linkage	3- point linkage	2- point linkage	2- point linkage
Working width (m)	6,15-6,55	6,15-6,55	6.5-7.6	7.0-8.2
Number of swaths	1	1	1	1
Rotor diameter (m)	2.95	2.95	3.2	3.5
Tine arms per rotor / double tines per tine arm	10/4	10/4	12/4	12/4
MIN-trans detachable tine arms	Standard	Standard	Standard	Standard
Tangential tine arm control	Standard	Standard	Standard	Standard
Covered cam track	–	–	Standard	Standard
3 wheel multi-touch chassis	–	–	Standard	Standard
Advanced wide-track axle	Standard	Standard	–	–
Drive chassis	Standard	–	Standard	Standard
3-D tandem bogie axle	Optional	Optional	–	–
Tandem caster wheels	–	–	Optional	Optional
Central height adjustment	Standard	Standard	Standard	Standard
Central height adjustment	2.95	2.95	2.92	2.92
Transport height without/with rake arms (m)	2.75 / 3.5	2.45 / 3.2	3.50 / 4.00	3.59 / 4.00
Shock absorber	–	Standard	–	–
Active steering of the frame	Standard	–	Standard	Standard
Central cardanic suspension	–	–	Standard	Standard
Rotors tyres	16x6.5-8	16x6.5-8	16x6.5-8 10PR	16x6.5-8 10PR
Main frame tyres standard	10/80x12	–	10.0/75-15.3 8PR	10.0/75-15.3 8PR
Main frame tyres optional	–	–	13.0/55-16	13.0/55-16
Minimum PTO Power [kW/hp(CV)]	30/40	44/60	30/40	40/55
PTO speed (rpm)	540	540	540	540
Hydraulic remote required	1SA	1SA	1SA	1SA
Weight (kg)	857	1140	1930	2010

To contact New Holland Agriculture about Prorotor C Rakes 540RPM use Get a quote.

Explore Features

Maintenance free rotor arms

Efficient tine arm storage

Tangential tine arm technology

The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.

Available Models:

New Holland ProRotor™ C 660
New Holland ProRotor™ C 660M
New Holland ProRotor™ C 760
New Holland ProRotor™ C 820

Specifications:

New Holland ProRotor™ C 660	New Holland ProRotor™ C 660M	New Holland ProRotor™ C 760	New Holland ProRotor™ C 820
Specifications
Type of rake	Central delivery	Central delivery	Central delivery	Central delivery
Mounting type	2- point linkage	3- point linkage	2- point linkage	2- point linkage
Working width (m)	6,15-6,55	6,15-6,55	6.5-7.6	7.0-8.2
Number of swaths	1	1	1	1
Rotor diameter (m)	2.95	2.95	3.2	3.5
Tine arms per rotor / double tines per tine arm	10/4	10/4	12/4	12/4
MIN-trans detachable tine arms	Standard	Standard	Standard	Standard
Tangential tine arm control	Standard	Standard	Standard	Standard
Covered cam track	–	–	Standard	Standard
3 wheel multi-touch chassis	–	–	Standard	Standard
Advanced wide-track axle	Standard	Standard	–	–
Drive chassis	Standard	–	Standard	Standard
3-D tandem bogie axle	Optional	Optional	–	–
Tandem caster wheels	–	–	Optional	Optional
Central height adjustment	Standard	Standard	Standard	Standard
Central height adjustment	2.95	2.95	2.92	2.92
Transport height without/with rake arms (m)	2.75 / 3.5	2.45 / 3.2	3.50 / 4.00	3.59 / 4.00
Shock absorber	–	Standard	–	–
Active steering of the frame	Standard	–	Standard	Standard
Central cardanic suspension	–	–	Standard	Standard
Rotors tyres	16x6.5-8	16x6.5-8	16x6.5-8 10PR	16x6.5-8 10PR
Main frame tyres standard	10/80x12	–	10.0/75-15.3 8PR	10.0/75-15.3 8PR
Main frame tyres optional	–	–	13.0/55-16	13.0/55-16
Minimum PTO Power [kW/hp(CV)]	30/40	44/60	30/40	40/55
PTO speed (rpm)	540	540	540	540
Hydraulic remote required	1SA	1SA	1SA	1SA
Weight (kg)	857	1140	1930	2010

Read less...

To contact New Holland Agriculture about Prorotor C Rakes 540RPM use Get a quote.
