Vermeer Walk Behind Trencher | RTX130

Vermeer - Walk Behind Trencher | RTX130

Supplier: Vermeer Australia

Walk Behind Trencher | RTX130

The intuitive design of the industry-exclusive VZ steering allows ease of movement through difficult ground conditions. This machine also offers the option of tires or tracks to give operators the versatility to take on their jobsite challenges.

Video for Vermeer Walk Behind Trencher | RTX130

Receive 1-3 days from order

Steers effortlessly with the VZ steering system that requires minimal effort to the handle bars.

Fits into narrow areas with footprint that measures only 35”/88.9 cm wide.

Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.

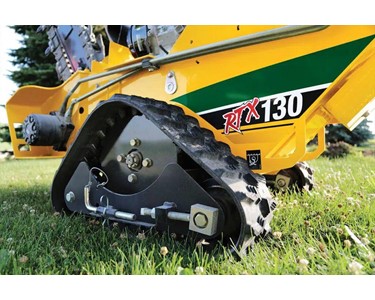

Elimination of the tail wheel on the track unit provides trenching depth control in uneven ground conditions and convenience to move through tight spaces.

General Dimensions and Weights

Length (With Tracks): 73 inches / 185.4 cm
Length (With Tires): 83 inches / 210.8 cm
Width: 35 inches / 88.9 cm
Height: 46 inches / 116.8 cm
Weight (With Tracks): 1140 lbs / 517.1 kg
Weight (With Tires): 880 lbs / 399.2 kg

Engine

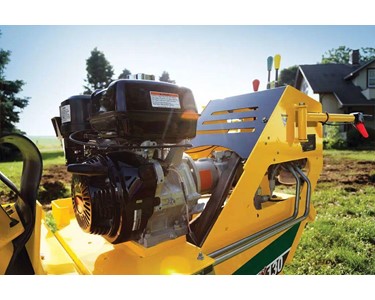

Make and Model: Honda GX390
Fuel Type: Petrol
Gross Horsepower: 13 hp / 9.7 kW
Horsepower at Maximum RPM (Gross): 13 hp / 9.7 kW
Displacement: 23.7 cu-in / .4 L
Number of Cylinders: 1
Cooling Medium: Forced Air

Hydraulic System

Attachment Pump Relief Pressure (Trencher/Forward): 2500 psi / 172.4 bar
Ground Drive Pump Relief Pressure Forward/Reverse: 2400 psi / 165.5 bar
Ground Drive Pump gpm at Maximum Engine RPM: 5.4 gpm / 20.4 L/min
Hydraulic Supply Filter Rating: 100 mesh strainer
Attachment Pump gpm at Maximum Engine RPM: 8 gpm / 30.3 L/min
Hydraulic Return Filter Rating: 3 micron
Capacities
Fuel Tank: 1.6 gal / 6.1 L
Hydraulic Tank: 10.8 gal / 40.7 L
Hydraulic System: 11.3 gal / 42.6 L
Engine Oil: .3 gal / 1.1 L
Ground Drive
Ground Drive Type: Hydrostatic
Clutch Type: none
Maximum Forward Transport Speed at Full Throttle: 3.1 mph / 5 km/h
Maximum Reverse Transport Speed at Full Throttle: 1 mph / 1.6 km/h
Wheelbase: 33.2 inches / 84.3 cm
Tread width (With Tires): 8.5 inches / 21.6 cm

To contact Vermeer Australia about Vermeer Walk Behind Trencher | RTX130 use Get a quote.

Steers effortlessly with the VZ steering system that requires minimal effort to the handle bars.

Fits into narrow areas with footprint that measures only 35”/88.9 cm wide.

Elimination of the tail wheel on the track unit provides trenching depth control in uneven ground conditions and convenience to move through tight spaces.

General Dimensions and Weights

Length (With Tracks): 73 inches / 185.4 cm
Length (With Tires): 83 inches / 210.8 cm
Width: 35 inches / 88.9 cm
Height: 46 inches / 116.8 cm
Weight (With Tracks): 1140 lbs / 517.1 kg
Weight (With Tires): 880 lbs / 399.2 kg

Engine

Make and Model: Honda GX390
Fuel Type: Petrol
Gross Horsepower: 13 hp / 9.7 kW
Horsepower at Maximum RPM (Gross): 13 hp / 9.7 kW
Displacement: 23.7 cu-in / .4 L
Number of Cylinders: 1
Cooling Medium: Forced Air

Hydraulic System

Attachment Pump Relief Pressure (Trencher/Forward): 2500 psi / 172.4 bar
Ground Drive Pump Relief Pressure Forward/Reverse: 2400 psi / 165.5 bar
Ground Drive Pump gpm at Maximum Engine RPM: 5.4 gpm / 20.4 L/min
Hydraulic Supply Filter Rating: 100 mesh strainer
Attachment Pump gpm at Maximum Engine RPM: 8 gpm / 30.3 L/min
Hydraulic Return Filter Rating: 3 micron
Capacities
Fuel Tank: 1.6 gal / 6.1 L
Hydraulic Tank: 10.8 gal / 40.7 L
Hydraulic System: 11.3 gal / 42.6 L
Engine Oil: .3 gal / 1.1 L
Ground Drive
Ground Drive Type: Hydrostatic
Clutch Type: none
Maximum Forward Transport Speed at Full Throttle: 3.1 mph / 5 km/h
Maximum Reverse Transport Speed at Full Throttle: 1 mph / 1.6 km/h
Wheelbase: 33.2 inches / 84.3 cm
Tread width (With Tires): 8.5 inches / 21.6 cm

Read less...

To contact Vermeer Australia about Vermeer Walk Behind Trencher | RTX130 use Get a quote.
